Disassembly & Assembly RD 12/RD 12A
wc_tx000671gb.fm 116
9.33 Removing the Fuel Tank
Prerequisites Machine shut down
Platform in upright position. See section Rear Frame Access.
Procedure Follow the procedure below to remove the fuel tank.

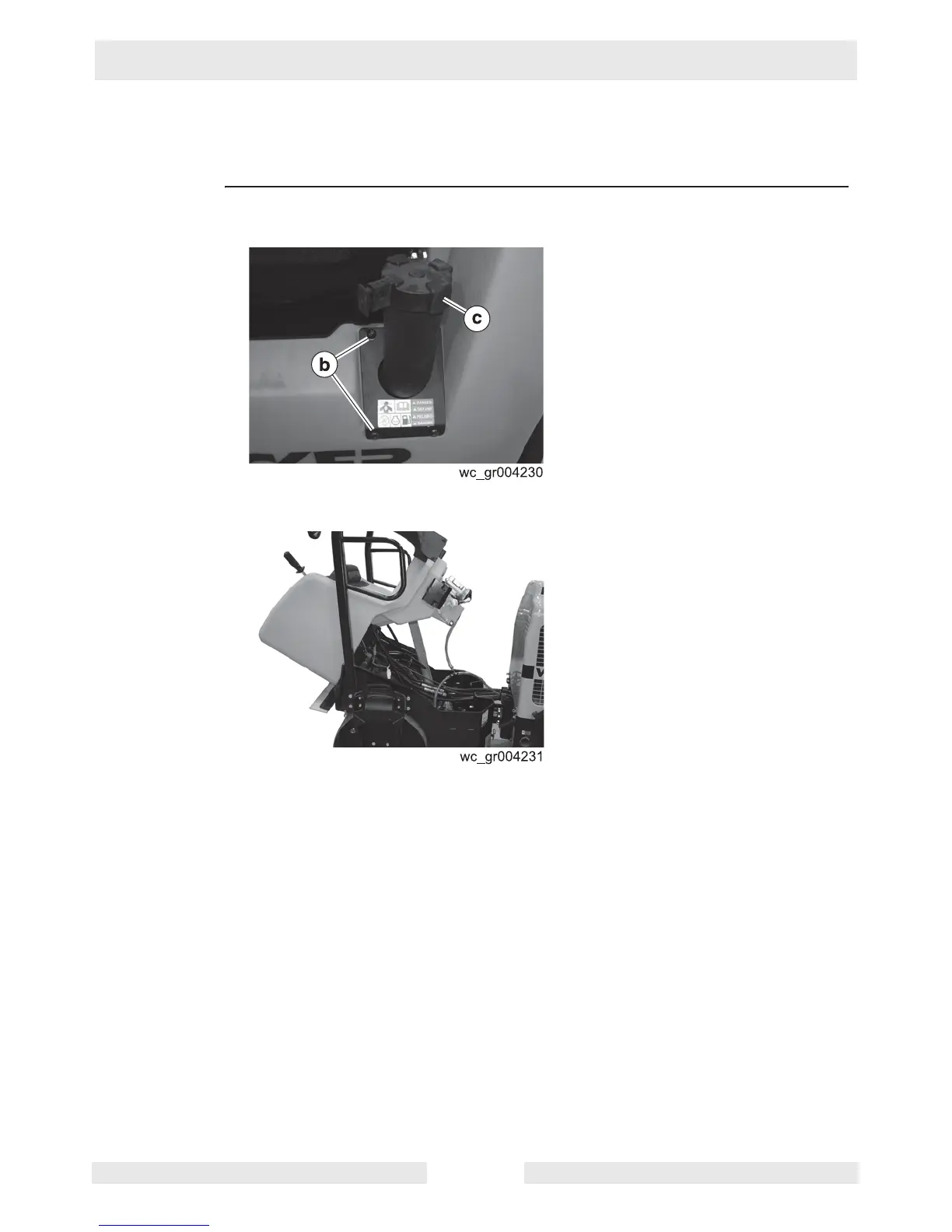

1. Drain the fuel from the fuel tank by disconnecting the fuel hose (a) at the engine.
2. Remove the screws (b) that secure the fuel spill guard, also remove the fuel cap (c).
3. Disconnect the gas struts (d).
4. Support the platform in the open position—approximately 70°.
This procedure continues on the next page.
