RD 12/RD 12A Disassembly & Assembly
wc_tx000671gb.fm 89

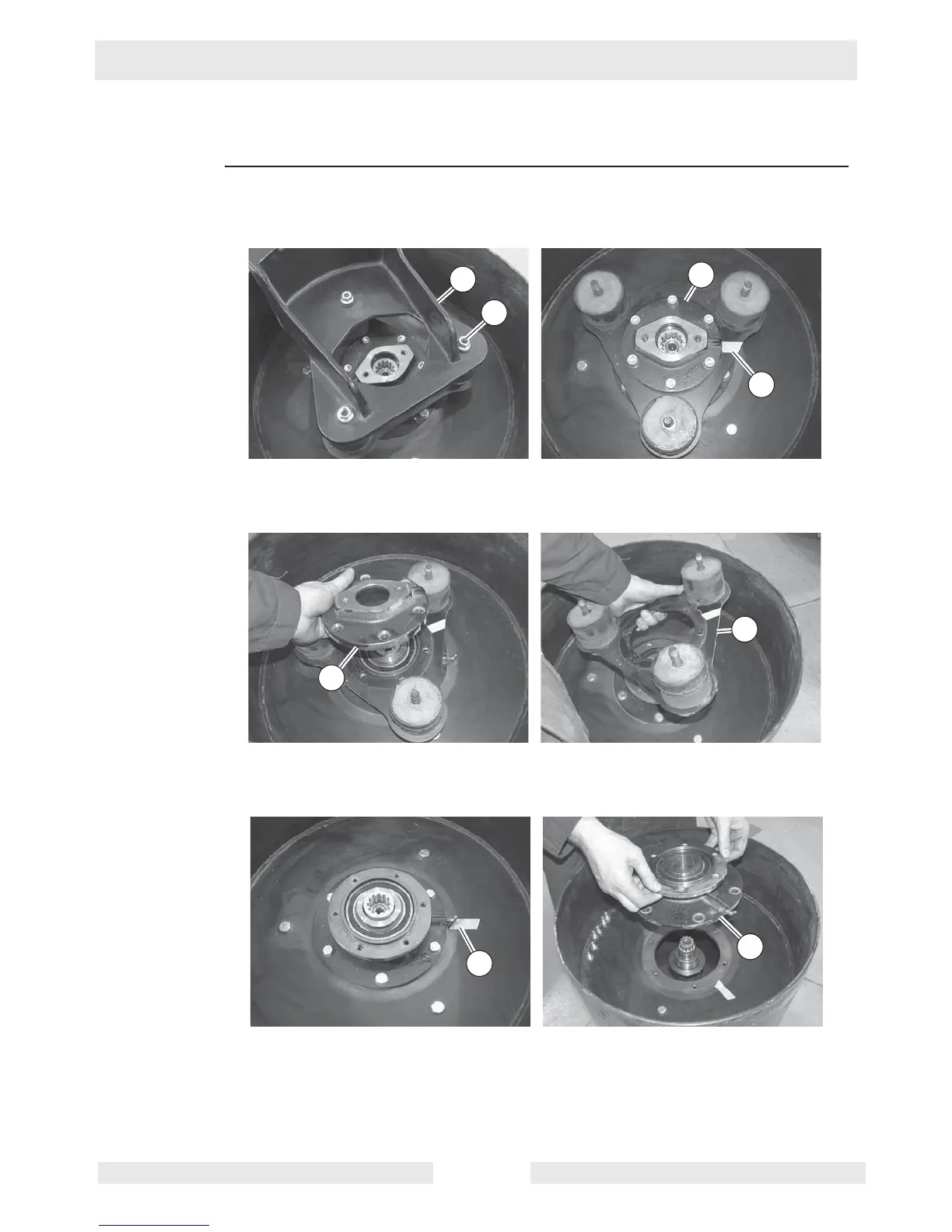

9.17 Removing the Exciter
Prerequisites Front drum removed
Procedure Follow the procedure below to remove the exciter.
1. Remove the screws (a) that secure the drum support (b) to the shock mounts and
remove the drum support.
2. Mark (c) the position of the motor mount (d).
3. Remove the motor mount (d).
4. Remove the shock mount plate (e).
5. Mark the position (f) of the bearing housing.
6. Remove the bearing housing (g).
This procedure continues on the next page.
wc_gr004161
c
a
b
d
wc_gr004162
e
d
wc_gr004163
g
f
To Next Page
