Disassembly & Assembly RD 12/RD 12A
wc_tx000671gb.fm 96
Continued from the previous page.
4. Be sure set the screws (j) are recessed on the larger bearing flange (g). Install a new
inner seal (l). Lightly grease the outer bearing race and press it into the larger bearing
flange.
5. Install a new outer seal (i) on the shaft of the larger bearing flange.
6. Press the bearing (h) into the smaller bearing flange (f).
7. Press the two bearing flanges together to create the drum hub.
8. Install the retaining ring (e).
9. Lubricate the exciter bearings with wheel bearing grease Mobil XHP222 or equivalent.
The procedure to assemble the exciter bearings is now complete.

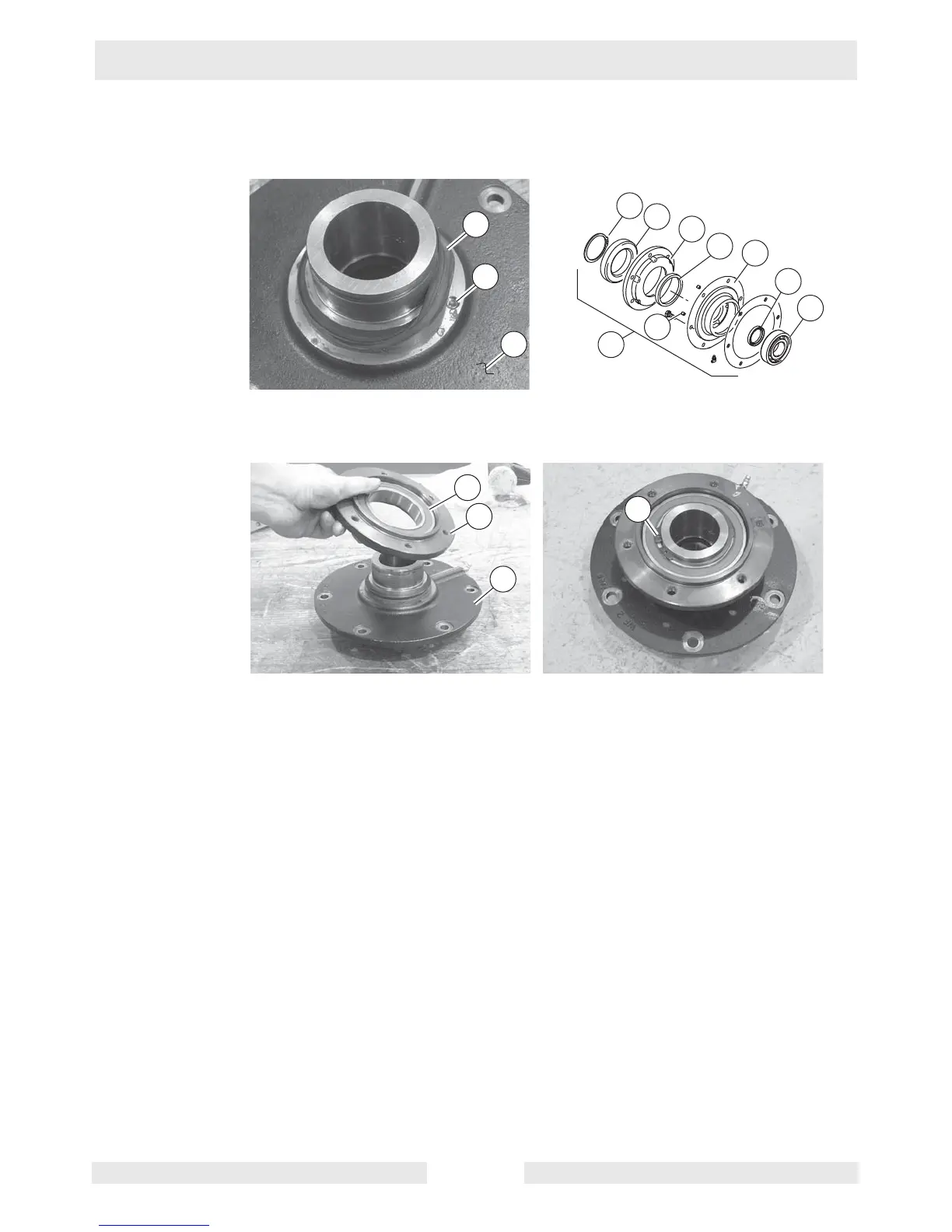

wc_gr004181
j
i
g
e
f
i
h
g
k
l
d
j
1
wc_gr004182
f
h
g
e
