Disassembly & Assembly RD 12/RD 12A
wc_tx000671gb.fm 82
Continued from the previous page.
7. Install the brake assembly (c). See section Installing the Brake.
8. Using an appropriate crane, position the drum support/drive motor assembly (b) on the
drum. Using Loctite 243 on the three screws (a), secure the drive motor assembly to the
drum. Torque the screws to 76 Nm (56 ft.lbs.).
The procedure to install the rear drive motor is now complete.

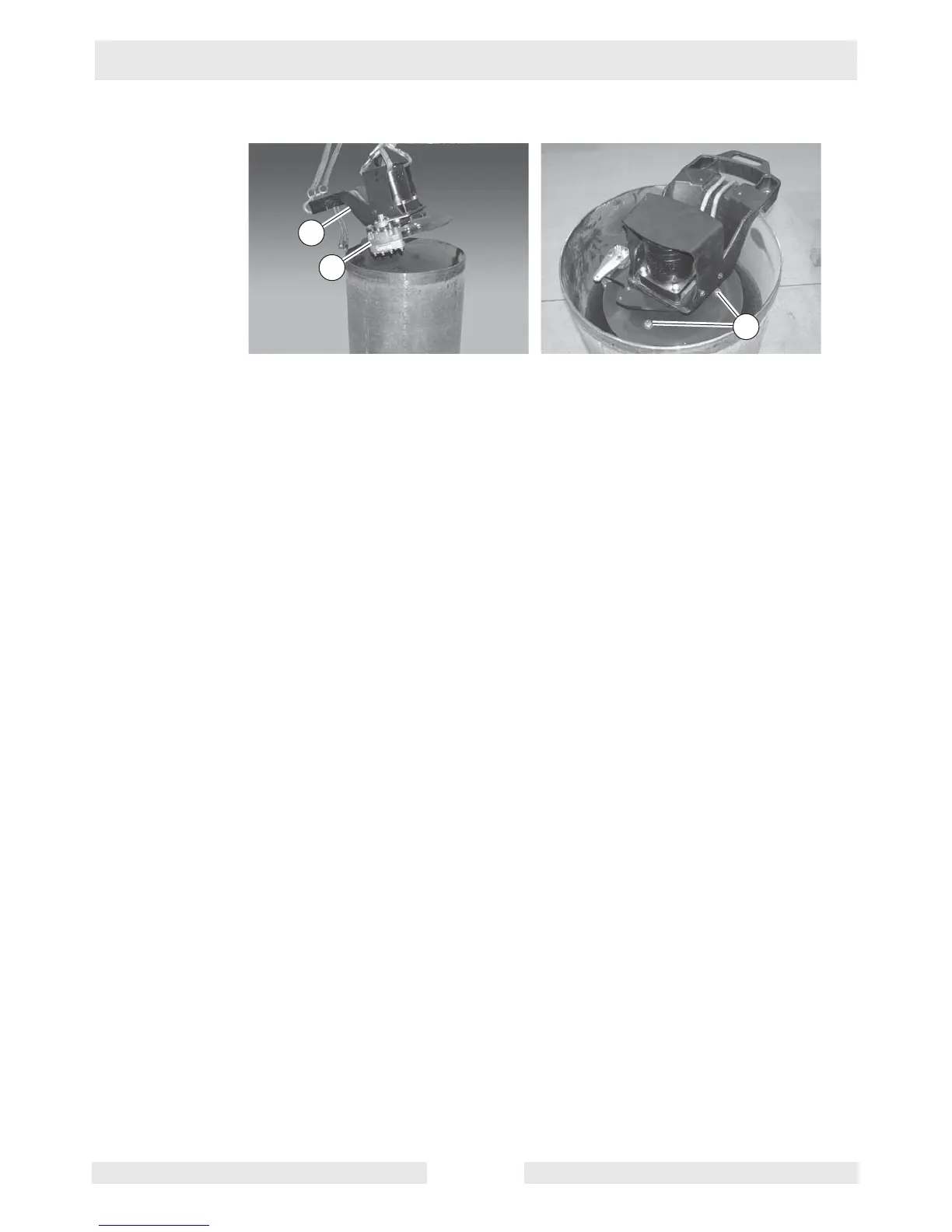

wc_gr004223
