Disassembly & Assembly RD 12/RD 12A
wc_tx000671gb.fm 84
Continued from the previous page.

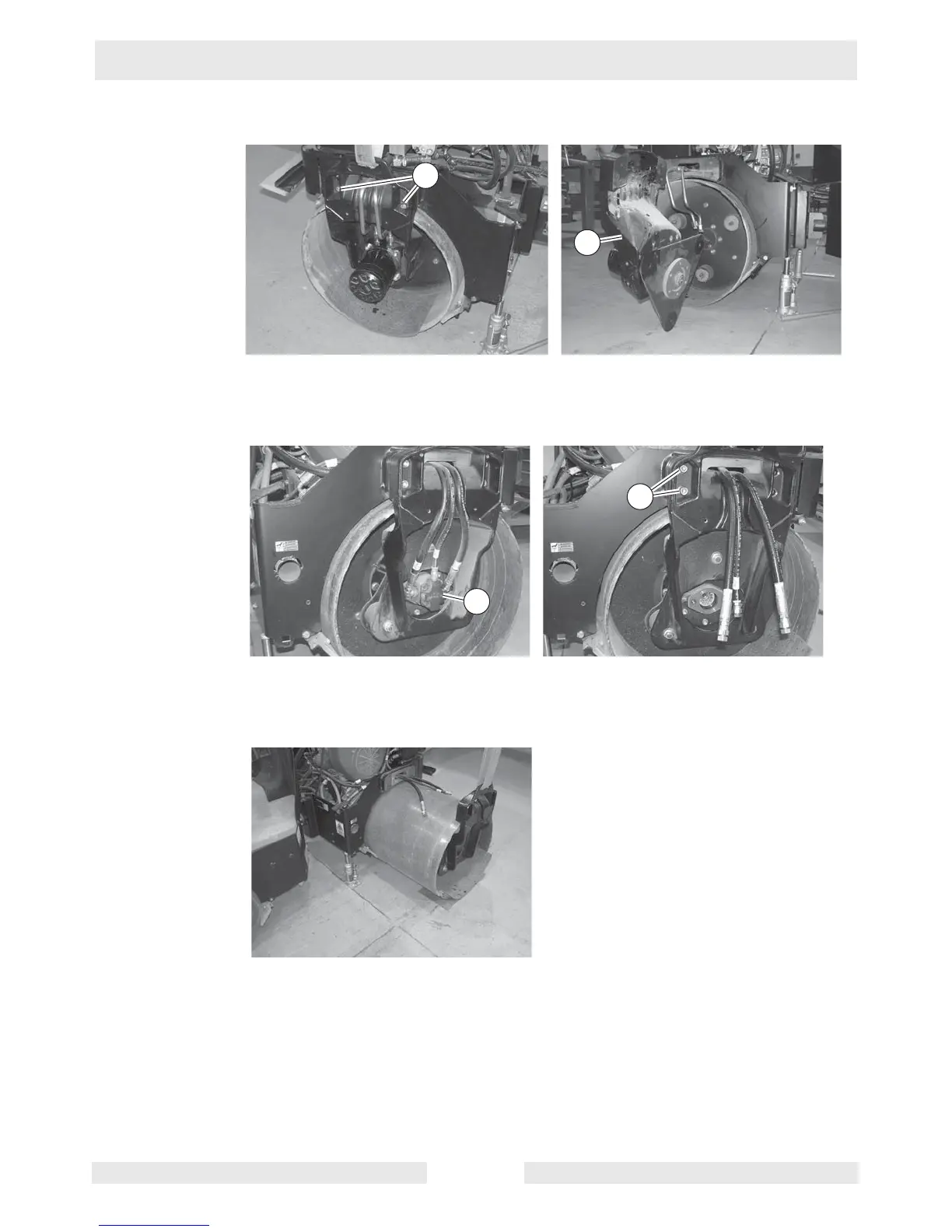

7. Remove the screws (g) that secure the drum support to the machine.
8. Lift the drum support (h) and drive motor from the machine.
9. Disconnect and plug the hydraulic lines (i) from the exciter motor. Then, remove the
exciter motor.
10.Secure the drum support with an appropriate sling and crane.
11.Remove the screws (j) that secure the drum support to the machine and pull the drum
from underneath the machine.
The procedure to remove the front drum is now complete.
wc_gr004148
g
h
wc_gr004149
i
j
wc_gr004150
To Next Page
