Operation 5
Rotating the upper carriage
Accident hazard! Upper carriage can rotate a little bit further.
Can cause serious injury or death.
► The upper carriage can rotate a little bit further as long as the hydraulic
fluid has not reached its operating temperature yet.
► If the machine is equipped with an extra weight (option), the upper
carriage projects beyond the tracks when it is rotated.
► Ensure that there are no obstacles in the immediate area before
rotating the upper carriage.
► If the joystick is moved further, the revolving superstructure rotates
quickly; If the joystick is moved less far, the revolving superstructure
rotates slowly.
► If the upper carriage is supposed to be rotated on a slope, operate the
control lever carefully to avoid fast movements.
Rotating the upper carriage to the left
Push the control lever on the left to the left.
Rotating the upper carriage to the right
Push the control lever on the left to the right.
Swivel unit brake
The swivel unit brake is enabled if:
• the control lever base is raised.
• The starter is turned to position 0 or the engine is stopped.
This secures the upper carriage against rotation.

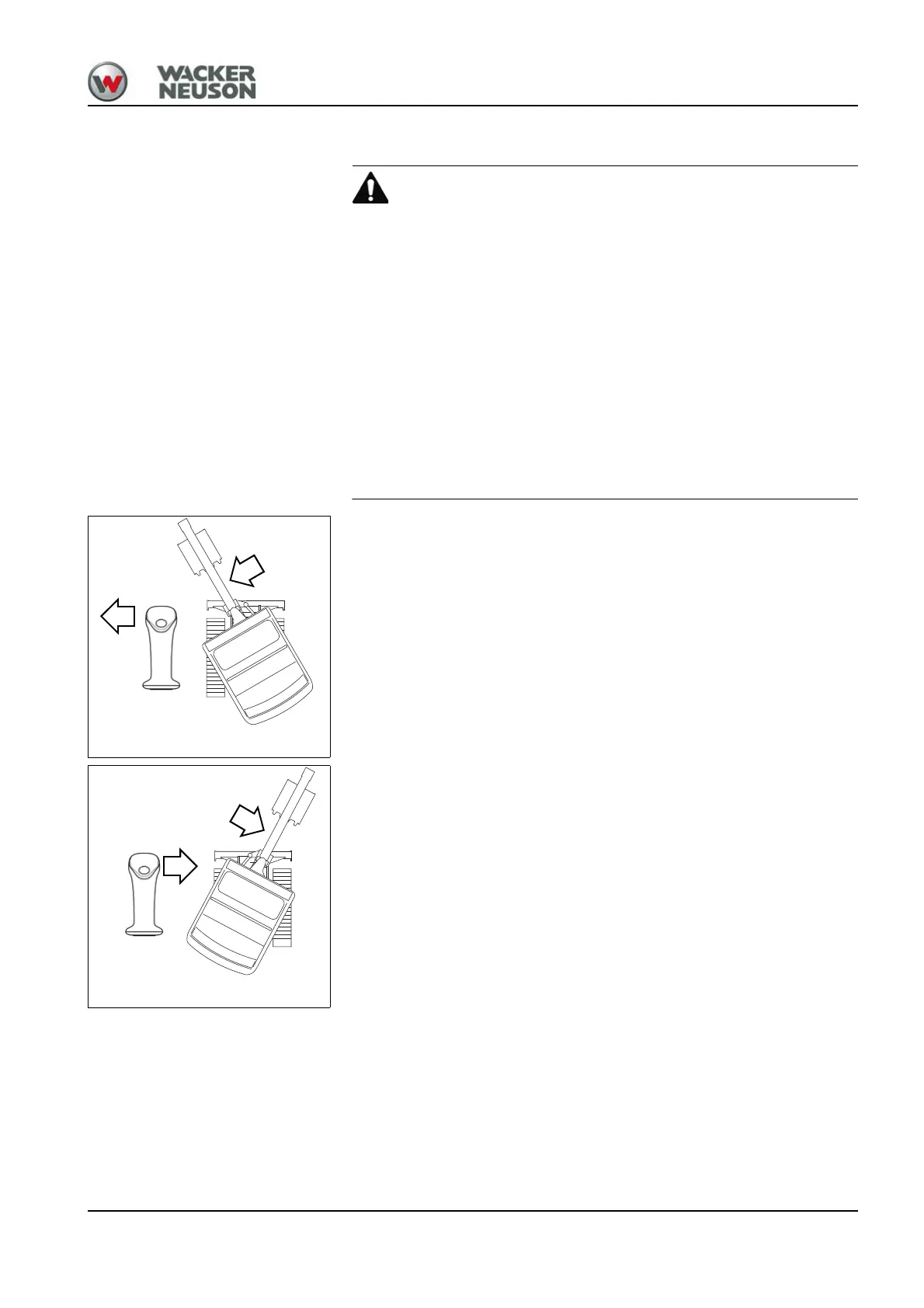

Fig. 137Rotating the upper carriage to the left
Fig. 138Rotating the upper carriage to the right
