3 Introduction
Meaning (ET24)
This label describes the pedal and control lever functions (control pattern
A/ISO controls).
Check before starting the machine the operating pattern that has been
chosen.
– see “ISO/SAE changeover” on page 3-20
Position
On the roof window on right in travel direction.

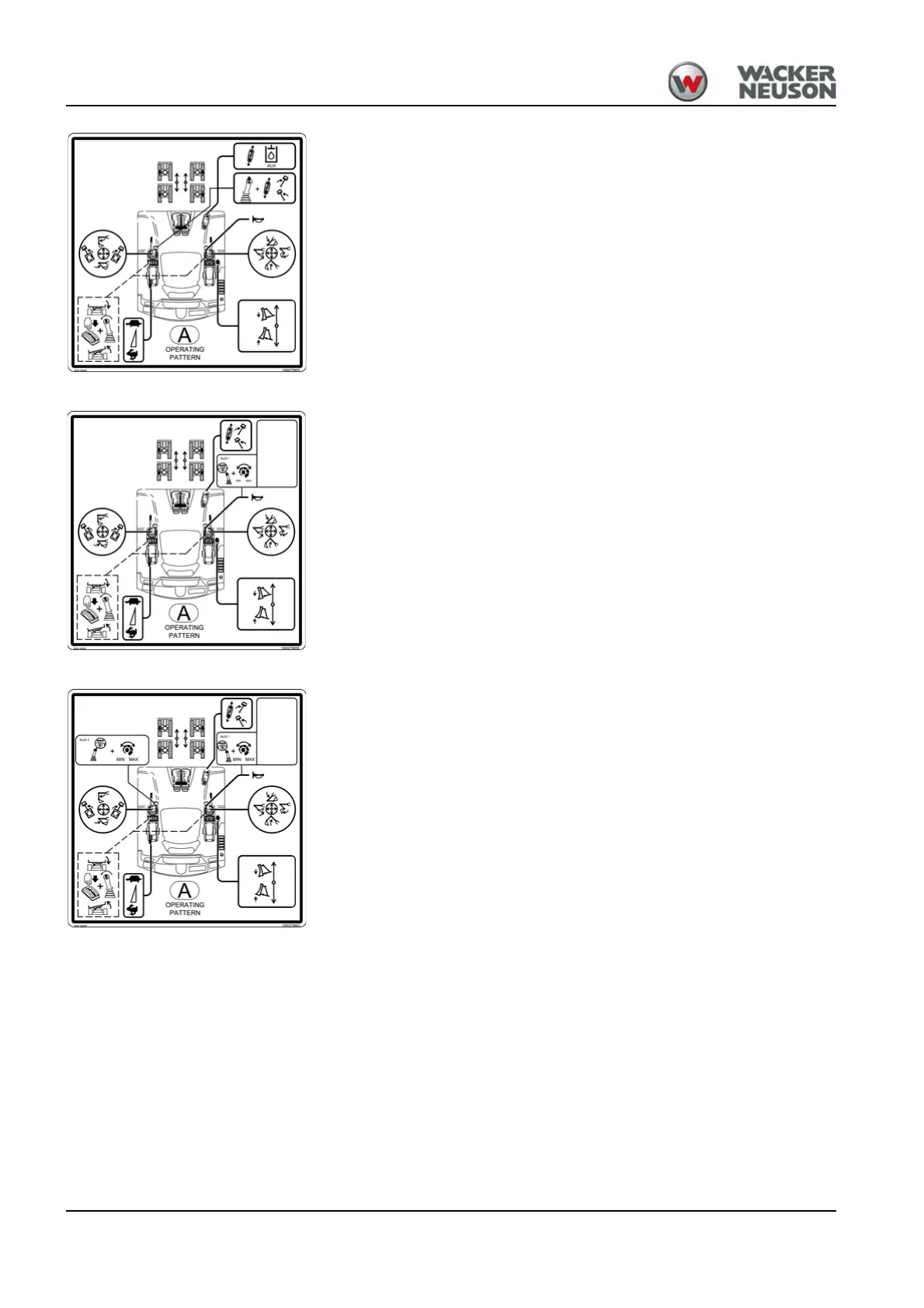

Fig. 44Function ET 24 standard
Fig. 45Function ET 24 auxiliary hydraulics/
proportional controls
Fig. 46Function ET 24 Powertilt/3rd control circuit
