RD 12/RD 12A Disassembly & Assembly
wc_tx000671gb.fm 103
9.26 Installing the Drive Pump
Prerequisites Engine and adapter installed
Procedure Follow the procedure below to install the drive pump.
1. Place a plastic sheet and a container under the machine to collect any liquid which
drains off. Dispose of this liquid in accordance with environmental protection legislation.
2. Remove the plug from the hydraulic hose (d) and connect the hydraulic hose to the
drive pump.
3. Apply Loctite 243 to the screws and secure the drive pump (f) to the adapter. Torque the
screws to 44 Nm (32 ft.lbs.).
4. Connect the hydraulic lines (b & c) to the drive pump.
5. Reconnect the control cable (a).
The procedure install the drive pump is now complete.

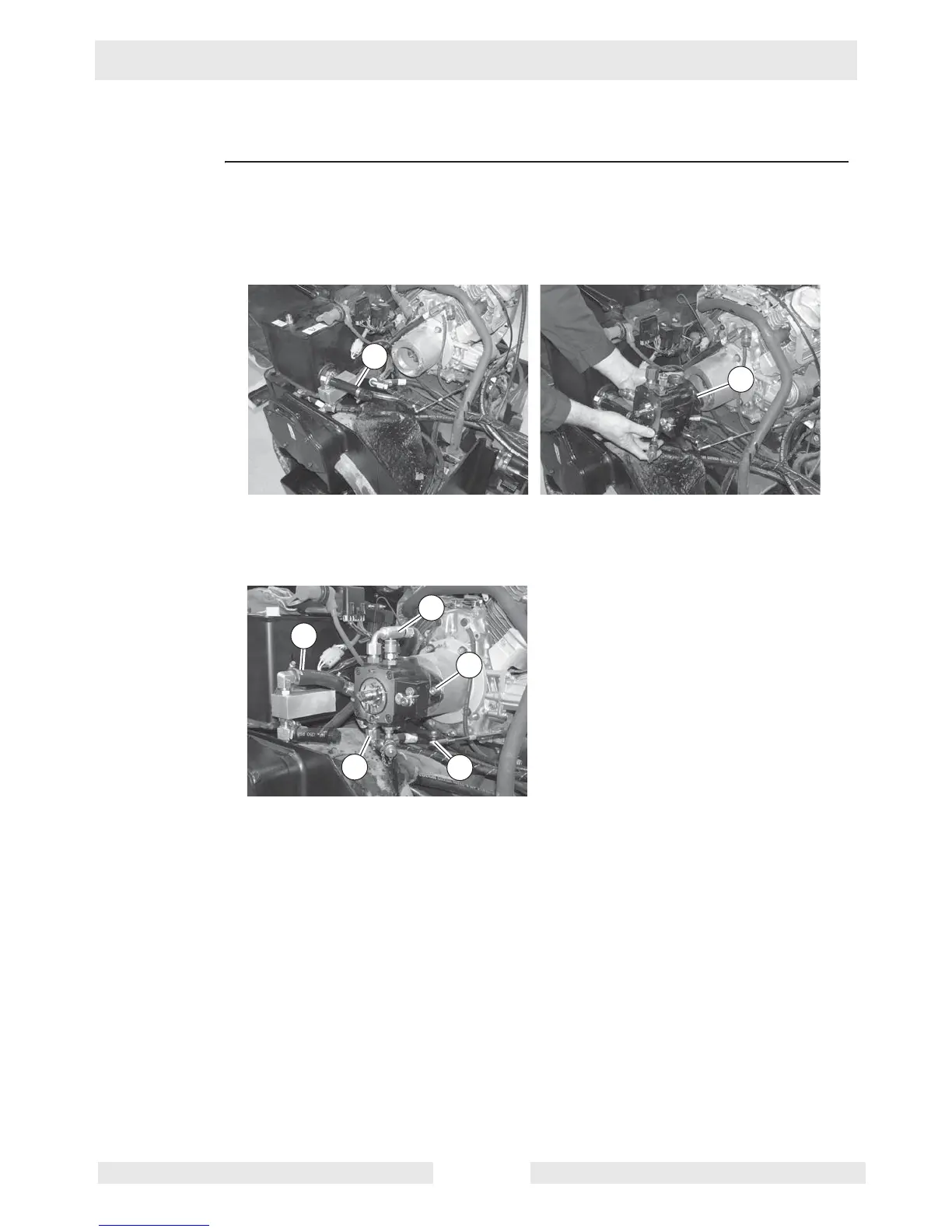

wc_gr004187
