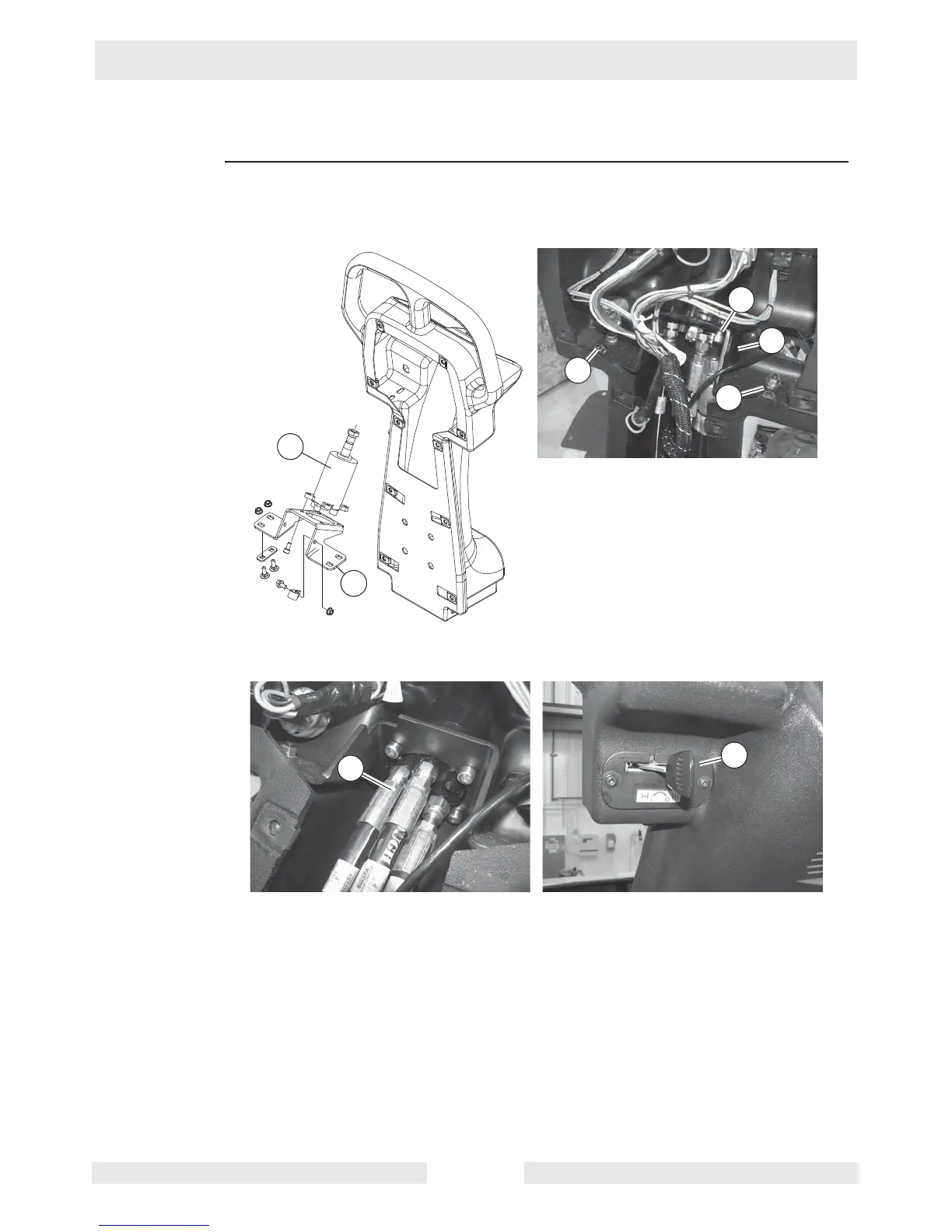

9.30 Installing the Steering Valve
Prerequisites Machine OFF and engine cool
Procedure Follow the procedure below to install the steering valve.
1. Position the steering valve (j) and bracket (h) into the control console. Secure the steer-
ing valve to the bracket with screws (i) .
2. Secure the bracket (h) to the console with the screws (g).
3. Connect the hydraulic lines (f).
4. Install the choke control (e).
This procedure continues on the next page.
wc_gr004240
g
i
h
h
g
j
wc_gr004241
e
f
To Next Page
