9.15 Removing the Front Drive Motor
Prerequisites  Front drum removed
 Puller
Procedure Follow the procedure below to remove the front drive motor.
1. Remove the front drum. See section Removing the Front Drum.
2. Remove the nut (a) that secures the hub (b) to the drive motor.
3. Remove the screws (c) that secure the drive plate (d) to the hub.
4. Slide the drive plate (d) off the hub.
5. Pull the hub from the drive motor using a puller (e).
6. Remove the screws that secure the drive motor (f) to the drum support (g) and remove
the drive motor.
The procedure to remove the front drive motor is now complete.

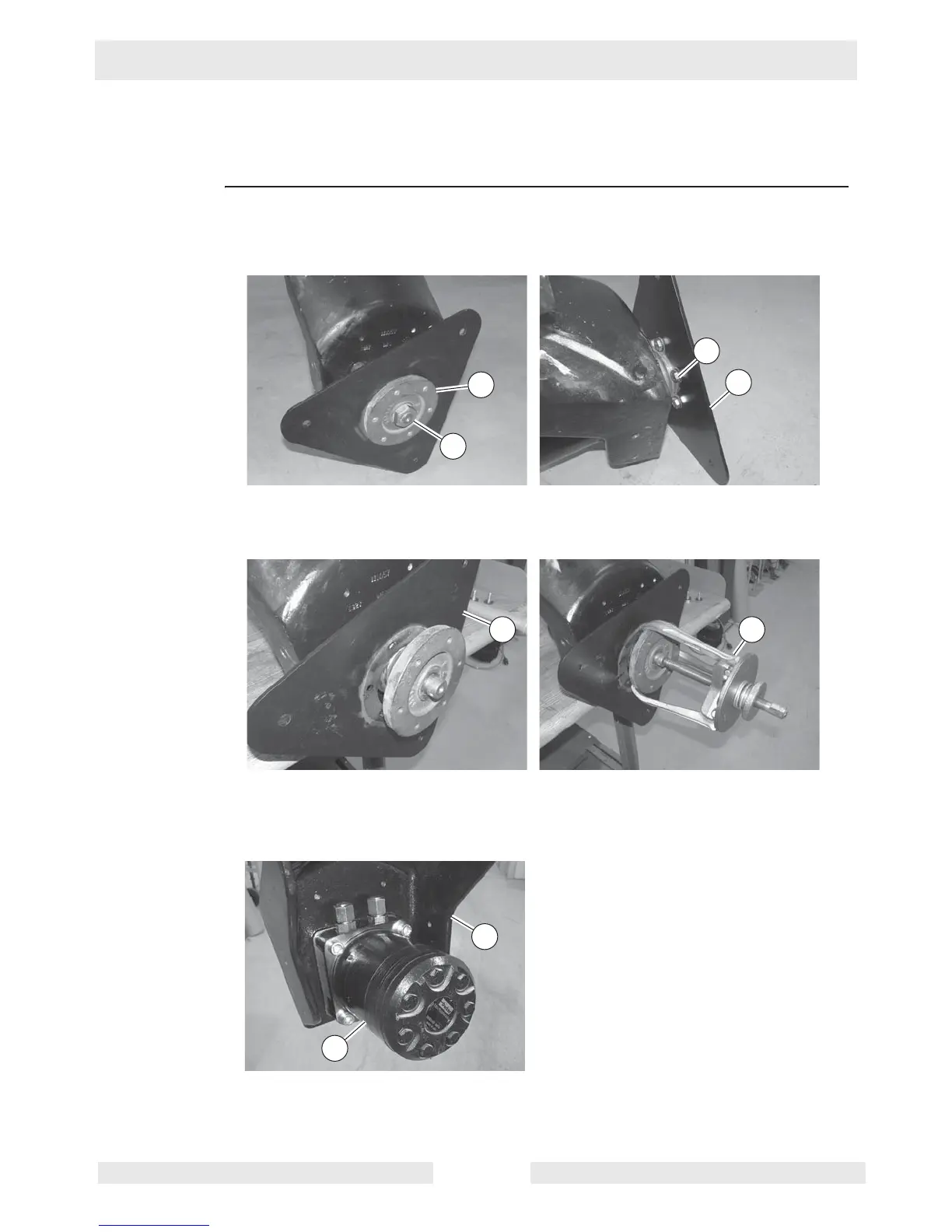

wc_gr004157
a
c
b
d
wc_gr004156
d
e
wc_gr004158
f
g
