Disassembly & Assembly RD 12/RD 12A
wc_tx000671gb.fm 112
9.31 Removing the Hydraulic Tank
Prerequisites Engine cool
Procedure Follow the procedure below to remove the hydraulic tank.
1. Place a plastic sheet and a container under the machine to collect any liquid which
drains off. Dispose of this liquid in accordance with environmental protection legislation.
2. Drain the hydraulic tank. See section Changing Hydraulic Oil and Filter.
3. Disconnect the lanyard (g) and the air cylinder (h) from the hydraulic tank. Support the
hood in the open position.
4. Remove and cap the three hydraulic lines (a).
5. Remove the mounting bracket (b).
6. Remove the screws (c) that secure the hydraulic tank to the frame.
This procedure continues on the next page.

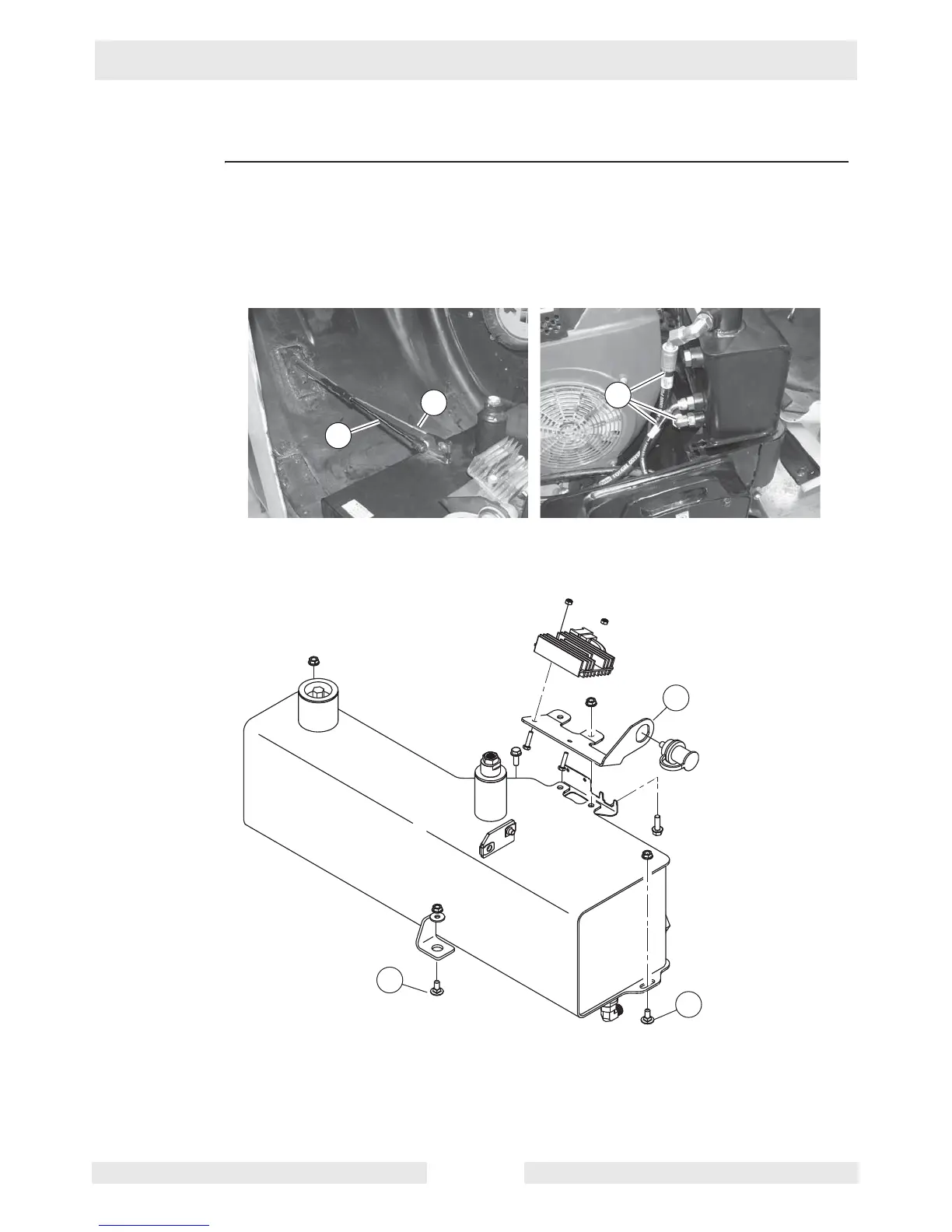

wc_gr004205
a
g
h
wc_gr004207
c
c
b
To Next Page
