Disassembly & Assembly RD 12/RD 12A
wc_tx000671gb.fm 88
9.16 Installing the Front Drive Motor
Prerequisites  Front drum removed
Procedure Follow the procedure below to install the front drive motor.
1. Apply Loctite 243 to the screws and install the drive motor (a) to the drum support (b).
Torque the the screws to 76 Nm (56 ft.lbs.).
2. Position the drive plate (c) and the hub (d) onto the shaft of the drive motor.
3. Apply Loctite 243 to screws (e) and secure the drive plate (c) to the hub. Torque the
screws to 44 Nm (32 ft.lbs.).
4. Apply Loctite 243 to the nut (f) and secure the hub to the drive motor. Torque the nut to
407 Nm (300 ft.lbs.).
The procedure to install the front drive motor is now complete.

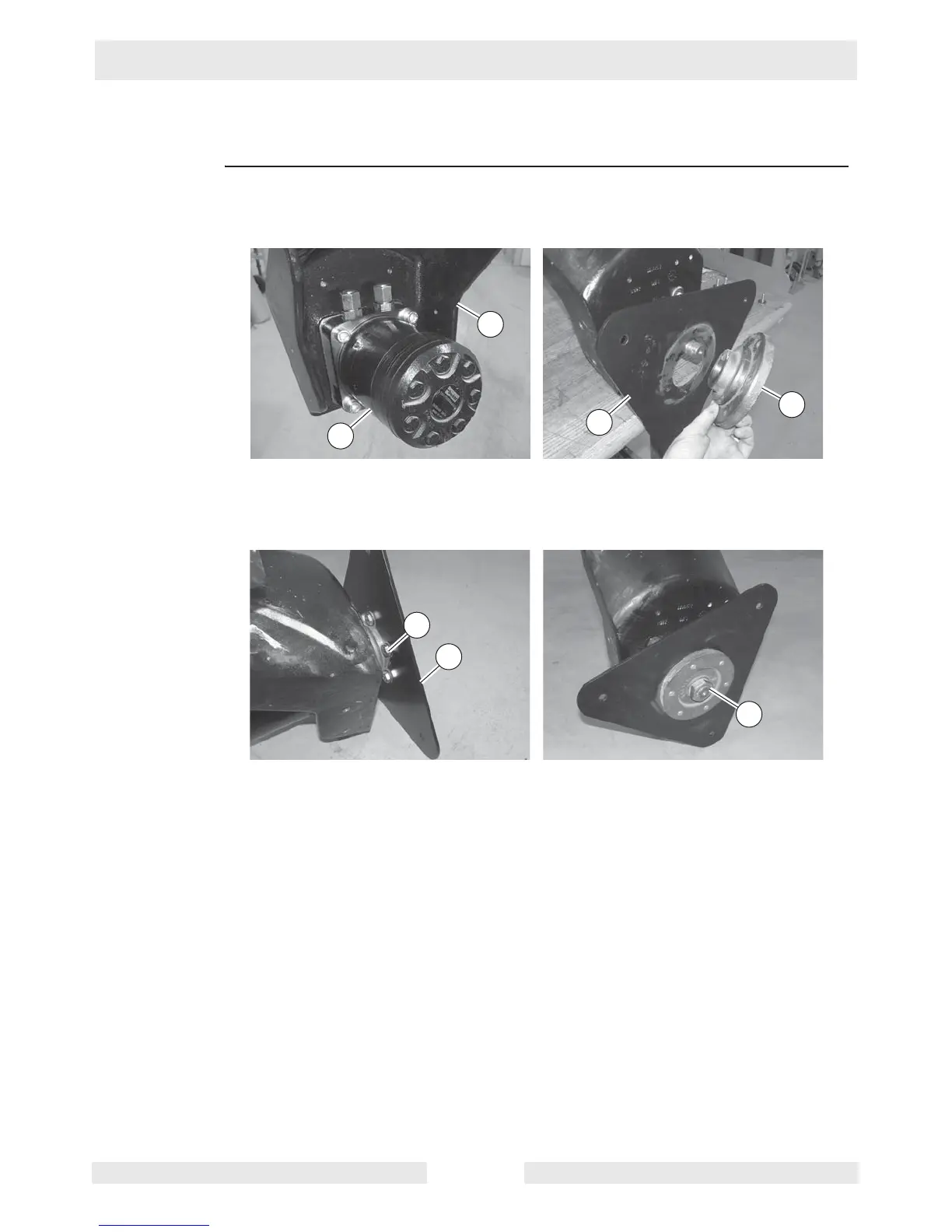

wc_gr004159
a
b
c
d
wc_gr004160
f
e
c
