RD 12/RD 12A Disassembly & Assembly
wc_tx000671gb.fm 71
9.7 Removing the Rear Drum
Prerequisites Jacks
Crane and appropriate sling

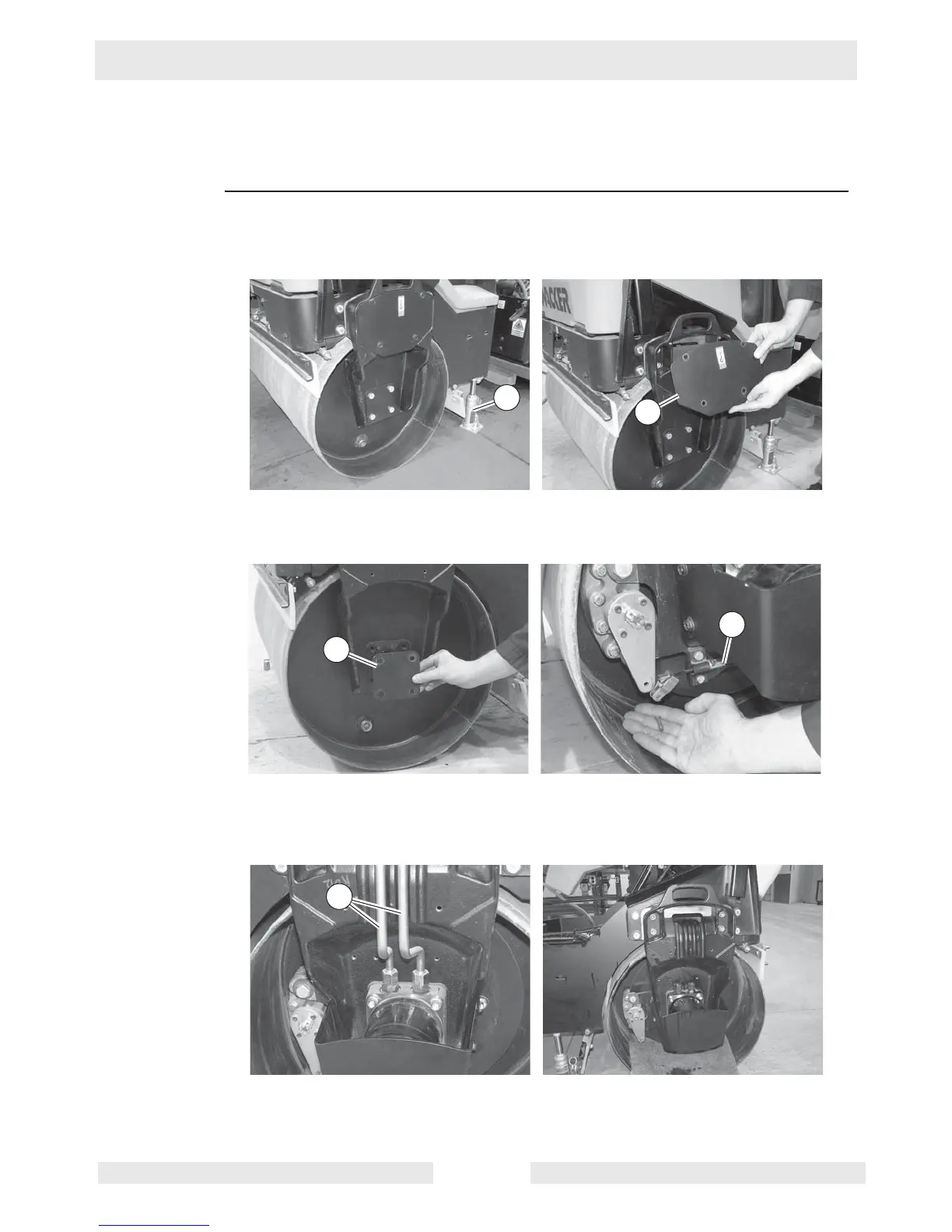

Procedure Follow the procedure below to remove the rear drum.
1. Chock the front drum.
2. Support the machine with jacks (a).
3. Remove the drum support covers (b).
4. Remove the bearing cover (c) from the non-drive-motor side of the drum.
5. Disconnect and remove the brake cable (d) from the drum.
6. Remove the metal hydraulic lines (e) from the hydraulic hoses. Cap and store the
hydraulic hoses in the machine frame.
This procedure continues on the next page.
