Disassembly & Assembly RD 12/RD 12A
wc_tx000671gb.fm 72
Continued from the previous page.
7. Support the drum support with an appropriate sling and crane.

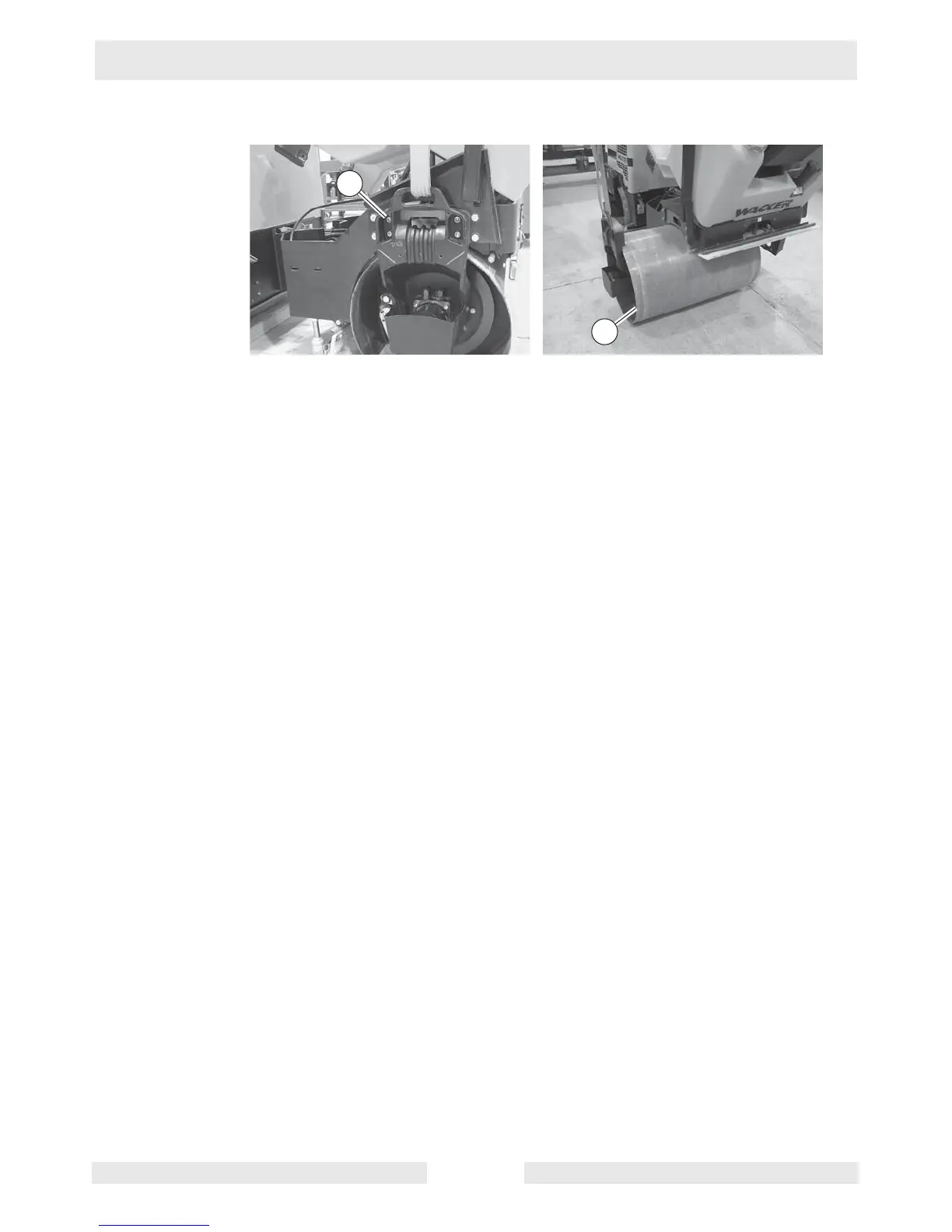

8. Remove the four screws (f) that secure the drum support to the machine and slide the
drum (g) from underneath the machine.
The procedure to remove the front drum is now complete.
wc_gr004197
g
f
