RD 12/RD 12A Disassembly & Assembly
wc_tx000671gb.fm 75

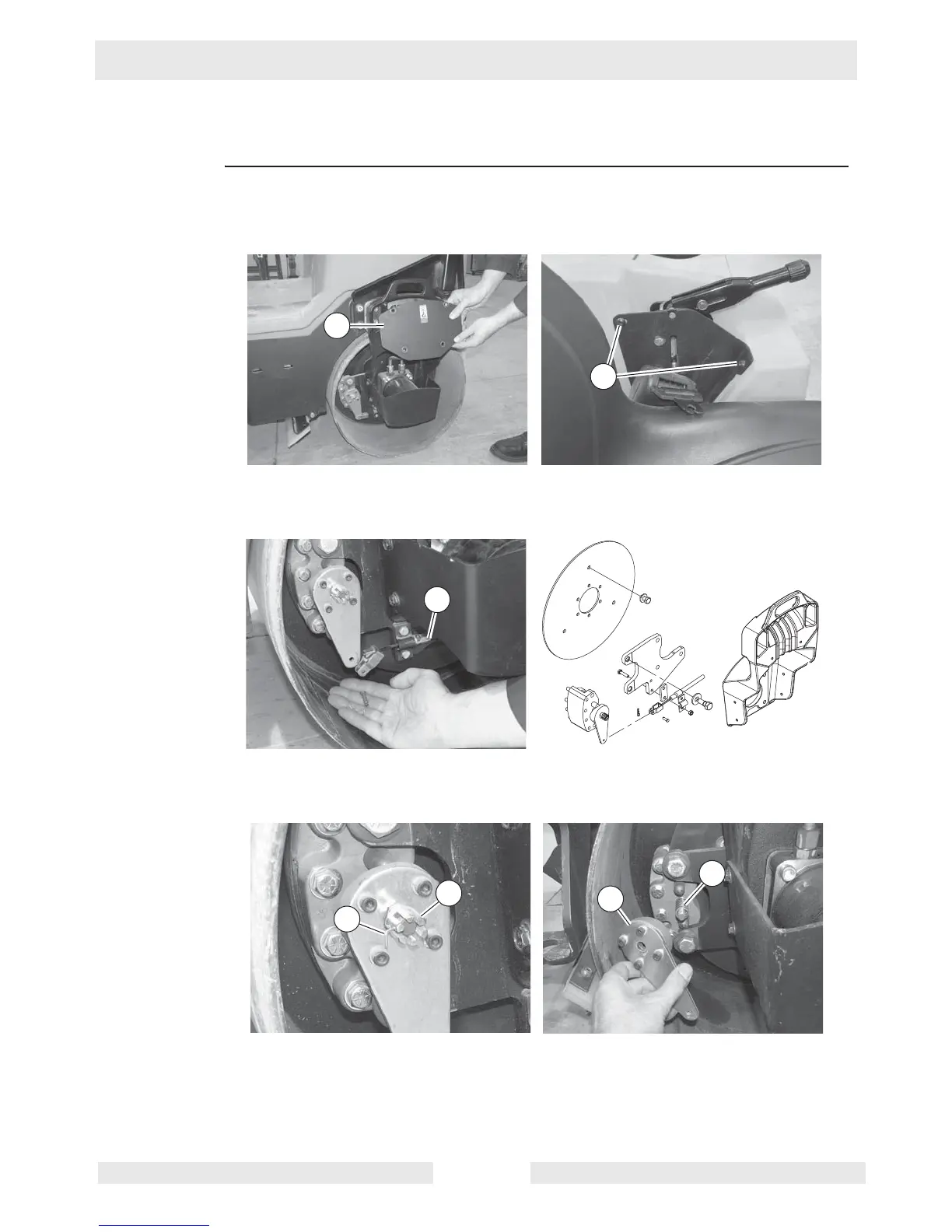

9.9 Removing the Brake and Brake Cable
Prerequisites Engine off
Procedure Follow the procedure below to remove the brake.
1. Chock the drums.
2. Remove the drum support cover (a).
3. Remove the screws (b) that secure the brake lever assembly to the machine.
4. Disconnect the brake cable (c) from the brake and the drum.
5. Remove the brake lever and brake cable from the machine.
6. Remove the cotter pin (d) and the castle nut (e).
7. Remove the arm (f) and the spring (g).
This procedure continues on the next page.
