Disassembly & Assembly RD 12/RD 12A
wc_tx000671gb.fm 108
9.29 Removing the Steering Valve
Prerequisites Machine OFF and engine cool.
Procedure Follow the procedure below to remove the steering valve.

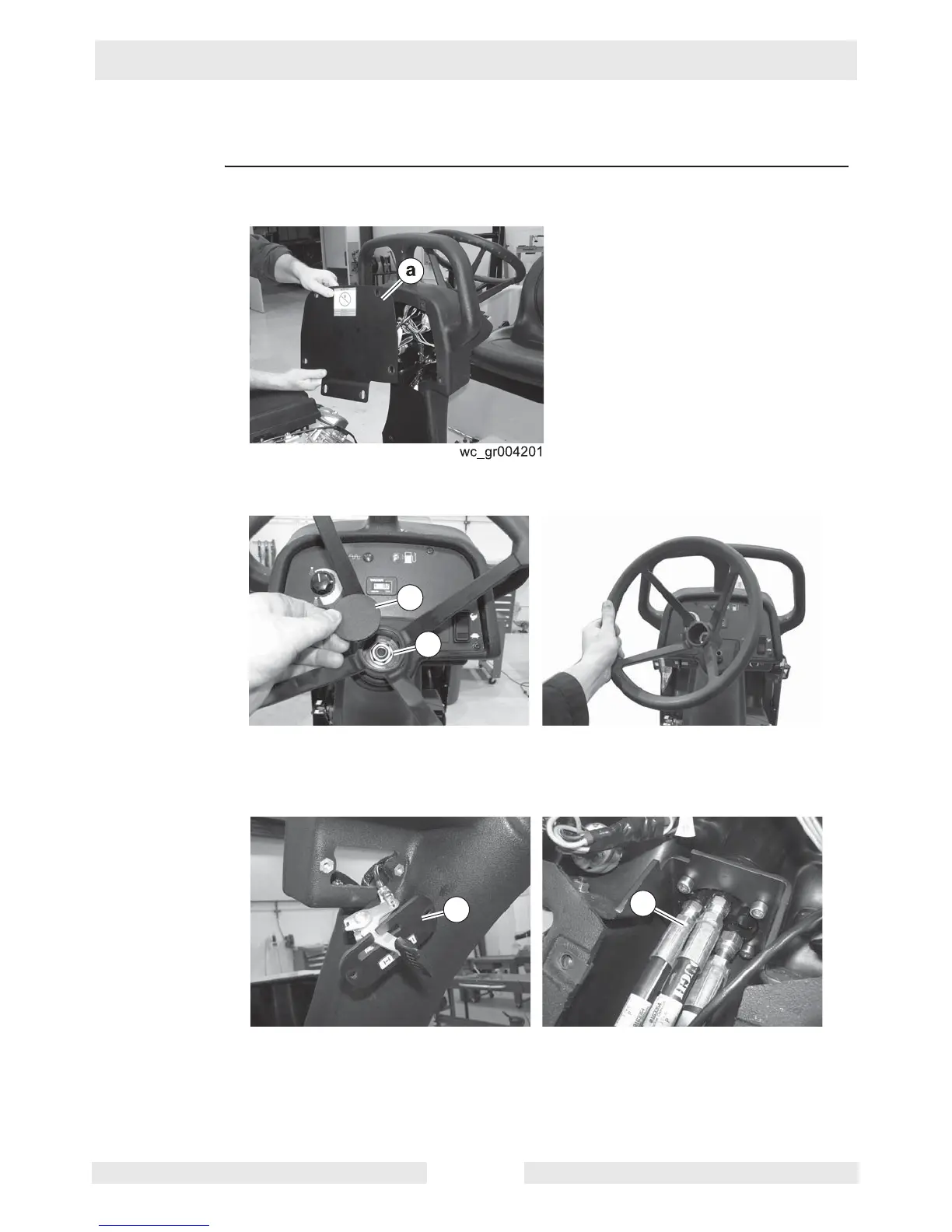

1. Remove the front console panel (a).
2. Remove the cable clamp (b).
3. Remove the small cover (c) on the steering wheel.
4. Remove the nut (d) that secures the steering wheel and remove the steering wheel.
5. Remove the screws that secure the choke control (e). Allow the choke control to hang
out of the way.
6. Label, disconnect, and plug the hydraulic lines (f).
This procedure continues on the next page.
wc_gr004202
c
d
wc_gr004203
e
f
To Next Page
