RD 12/RD 12A Disassembly & Assembly
wc_tx000671gb.fm 107
Continued from the previous page.

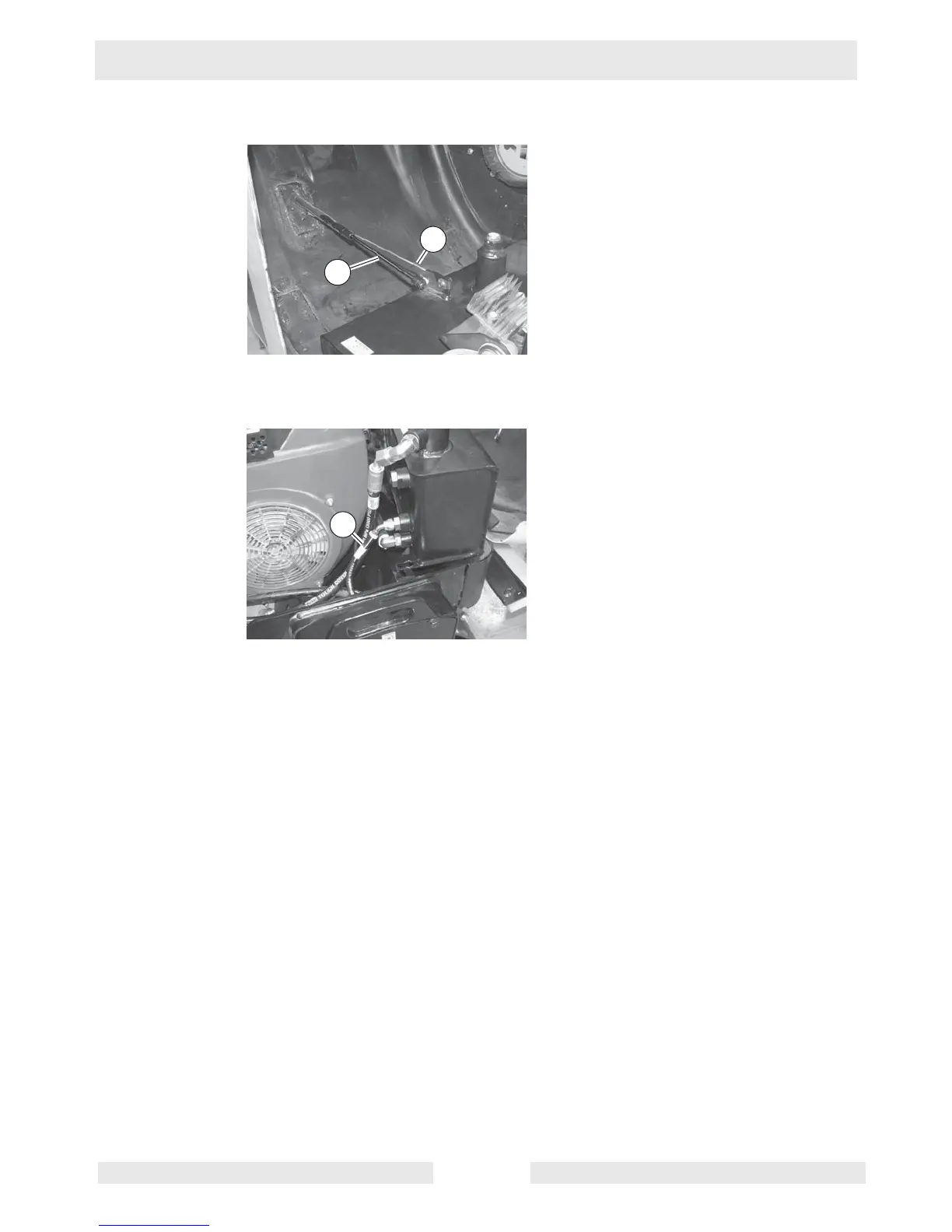

8. Reconnect the lanyard (g) to the hydraulic tank.
9. Reconnect the air cylinder (h) to the hydraulic tank.
10.Reconnect the exciter motor hydraulic line (i) from the hydraulic tank.
11.Secure the hydraulic tank to the machine. Torque the nuts to 25 Nm (18 ft.lbs.).
The procedure to install the engine is now complete.
