RD 12/RD 16 Spray System
wc_tx000670gb.fm 65
8.2 Checking Power to the Spray Bar Pump
Prerequisites
Seat platform in raised position. See section Rear Frame Access.
Procedure
Follow the procedure below to check power to the spray bar pump.

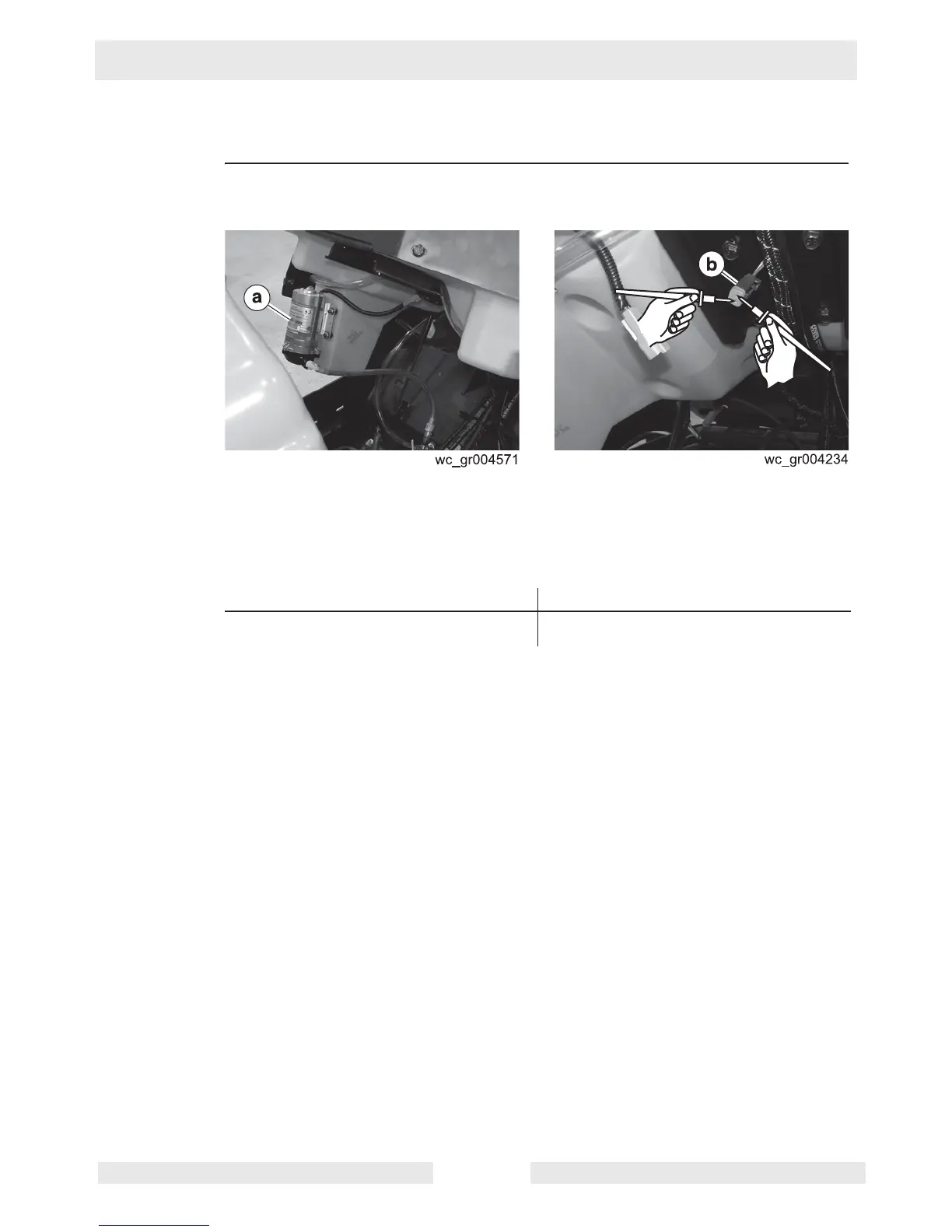

1. Disconnect the wiring from the water pump (a).
2. Place the key switch in the ON position.
3. Place the spray system switch in the ON position.
4. Measure the voltage at the connector (b).
Is more than 9.8V measured?
The procedure for checking the power to the spray bar pump is now complete.
Yes ____ No ____
The pump has failed; replace it. See section Checking Power to Pump
Timer Module.
