Disassembly & Assembly RD 12/RD 12A
wc_tx000671gb.fm 86
Continued from the previous page.

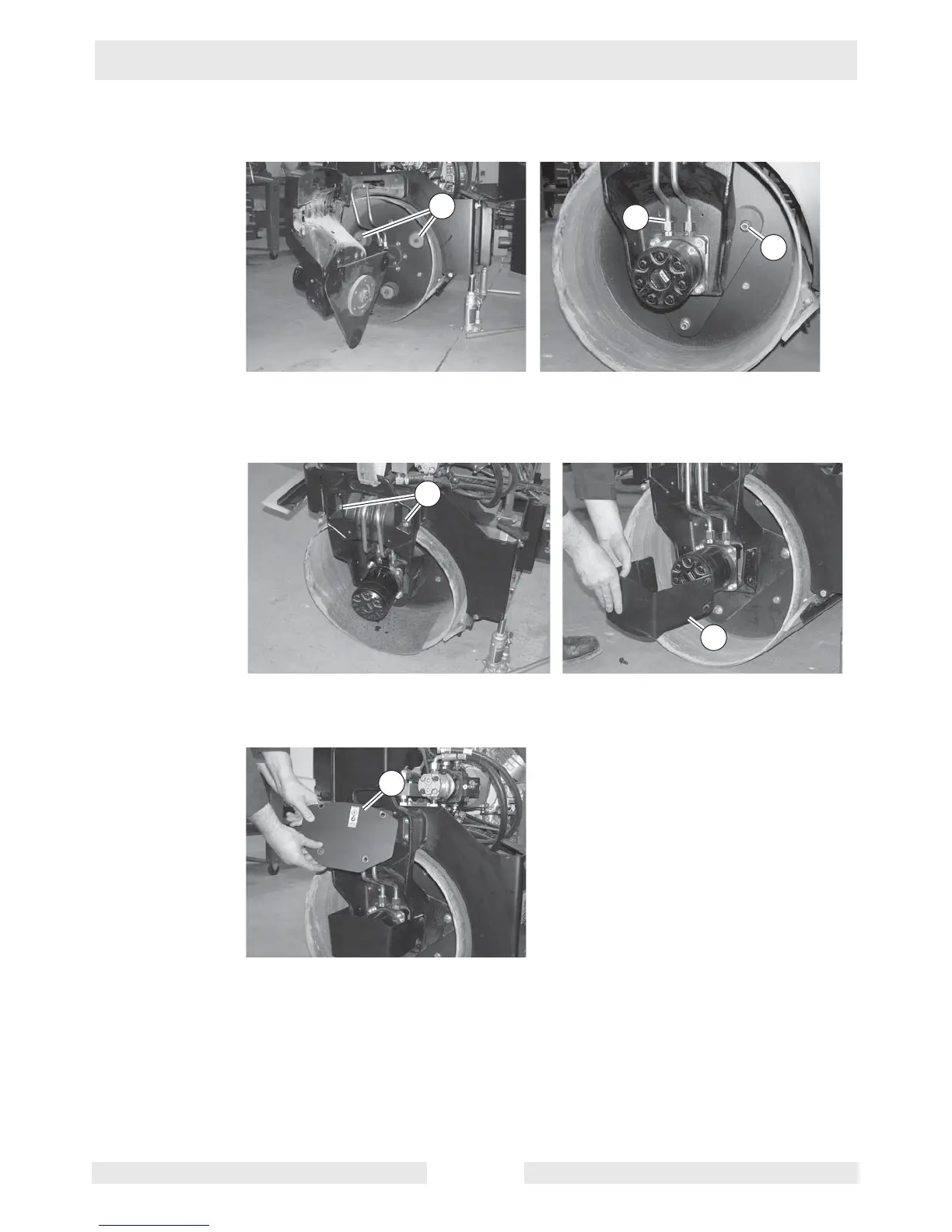

5. Position the drum so that the drive plate can be installed to the three shock mounts (d).
Install the drive plate to the drum. Torque the nuts (e) to 76 Nm (56 ft.lbs.).
6. Reconnect the hydraulic lines (f) to the drive motor.
7. Apply Loctite 243 to screws (g) and secure the drive-motor-side drum support to the
frame. Torque the screws to 79 Nm (58 ft.lbs.).
8. Install the drive motor guard (h).
9. Install the drum support covers (i) to each side of the machine.
The procedure to install the front drum is now complete.
wc_gr004153
d
e
f
wc_gr004154
g
h
wc_gr004155
i
