RD 12/RD 12A Disassembly & Assembly
wc_tx000671gb.fm 105
Continued from the previous page.

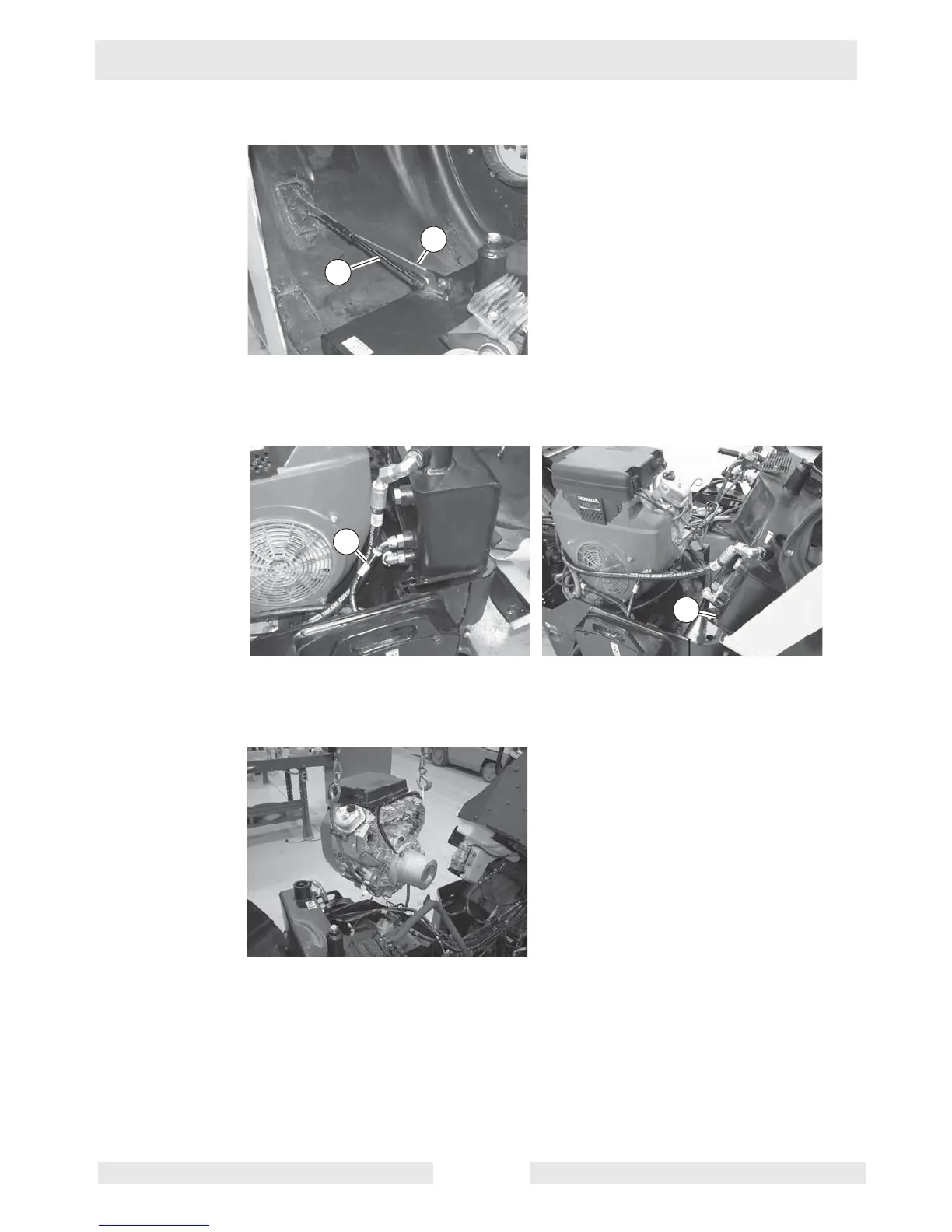

5. Disconnect the lanyard (g) from the hydraulic tank.
6. Disconnect the air cylinder (h) from the hydraulic tank. Support the hood in the open
position.
7. Disconnect and plug the exciter motor hydraulic line (i) from the hydraulic tank.
8. Remove the screws that secure the hydraulic tank to the machine. Position the tank (j)
so that you can access the screws that secure the engine to the frame.
9. Remove the screws that secure the engine to the frame.
10.Using an appropriate crane, lift the engine from the machine.
The procedure to remove the engine is now complete.
