Wacker Neuson RD 12A Repair Manual

Disassembly & Assembly RD 12/RD 12A
wc_tx000671gb.fm 78
Continued from the previous page.

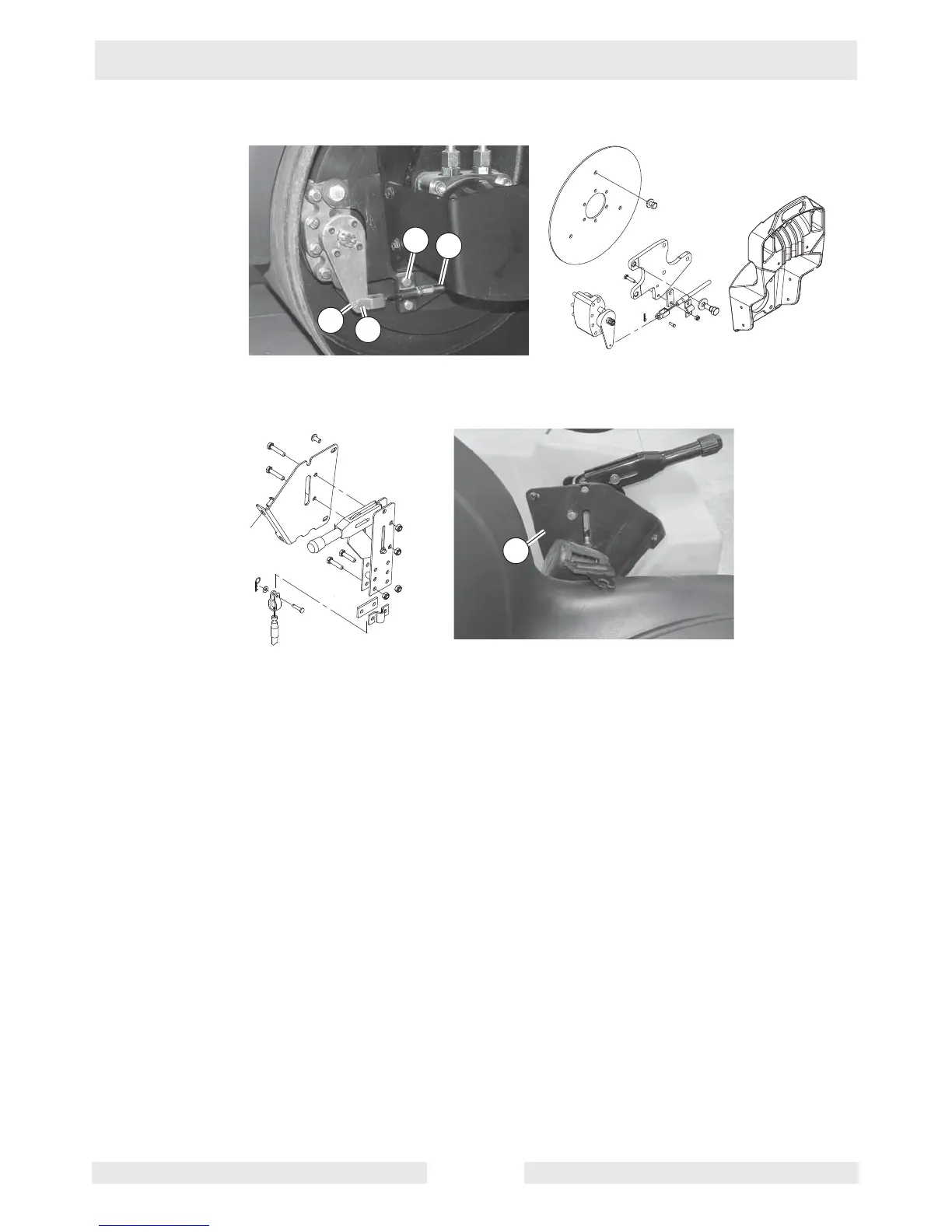

7. Install the two screws (g), nuts, and bracket which secure the cable (h) to the machine.
8. Install the hitch pin (e) and the clevis pin (f).
9. Run the cable through the drum support and connect it to the brake handle (b).
10.Secure the brake handle (b) to the machine.
11.Install the drum support cover.
The procedure to install the brake and brake cable is now complete.
wc_gr004215
g
h
e
f
wc_gr004216
b
