Disassembly & Assembly RD 12/RD 12A
wc_tx000671gb.fm 80
Continued from the previous page.

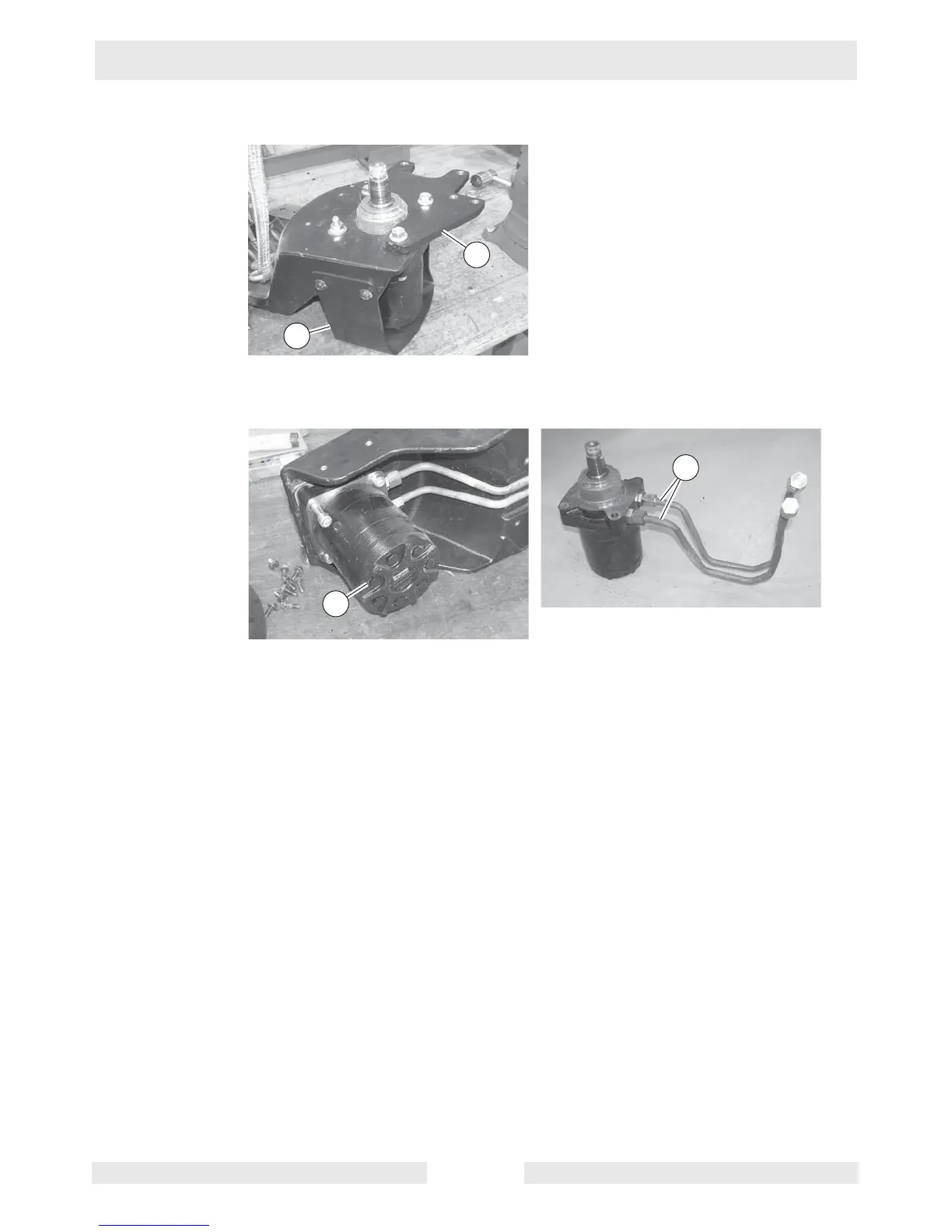

6. Remove the motor guard (g).
7. Remove the brake bracket (h).
8. Remove the drive motor (i) from the drum support.
9. Remove the hydraulic lines (j) and fittings from the drive motor if not already removed.
The procedure to remove the rear drive motor is now complete.
wc_gr004219
g
h
wc_gr004220
i
j
