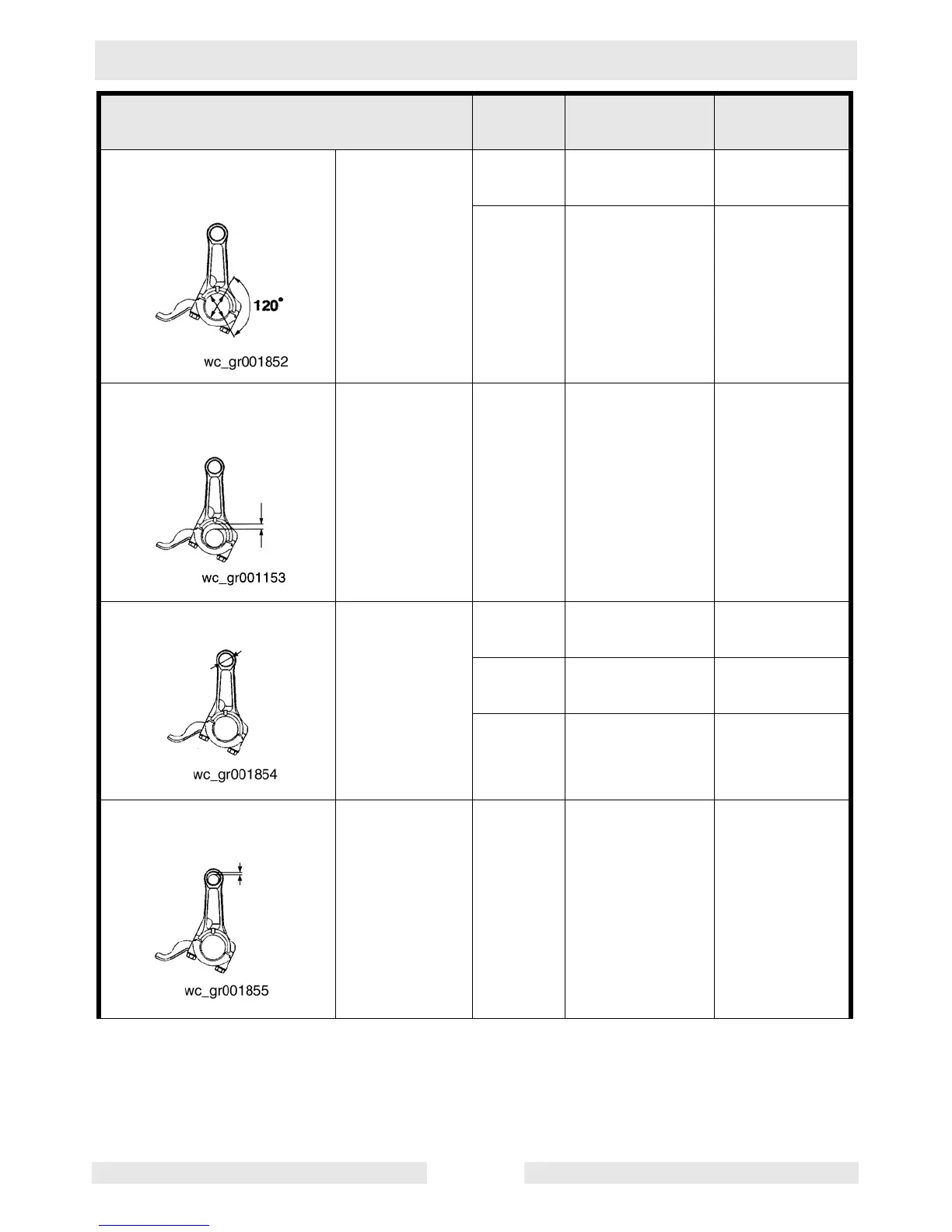

Clearance Data and Limits Table WM 130/170/270 Repair
wc_tx000385gb.fm 100
Connecting rod
Large-end inner diameter
WM 130
WM 170
30.000–30.016
(1.1811–1.1817)
30.1
(1.1850)
WM 270
30.000–30.016
(1.1811–1.1817)
34.1
(1.3425)
Clearance between large
end and crank pin
WM 130
WM 170
WM 270
0.020–0.049
(0.0008–0.0019)
0.2
(0.0078)
Small end inner diameter
WM 130
13.010–13.021
(0.5122–0.5126)
13.08
(0.5150)
WM 170
16.010–16.021
(0.6303–0.6307)
16.08
(0.6331)
WM 270
18.010–18.021
(0.7091–0.7095)
18.08
(0.7118)
Clearance bewteen small
end and piston pin
WM 130
WM 170
WM 270
0.010–0.029
(0.0004–0.0011)
0.12
(0.0047)
Item Model Standard
mm (in.)
Limit
mm (in.)
