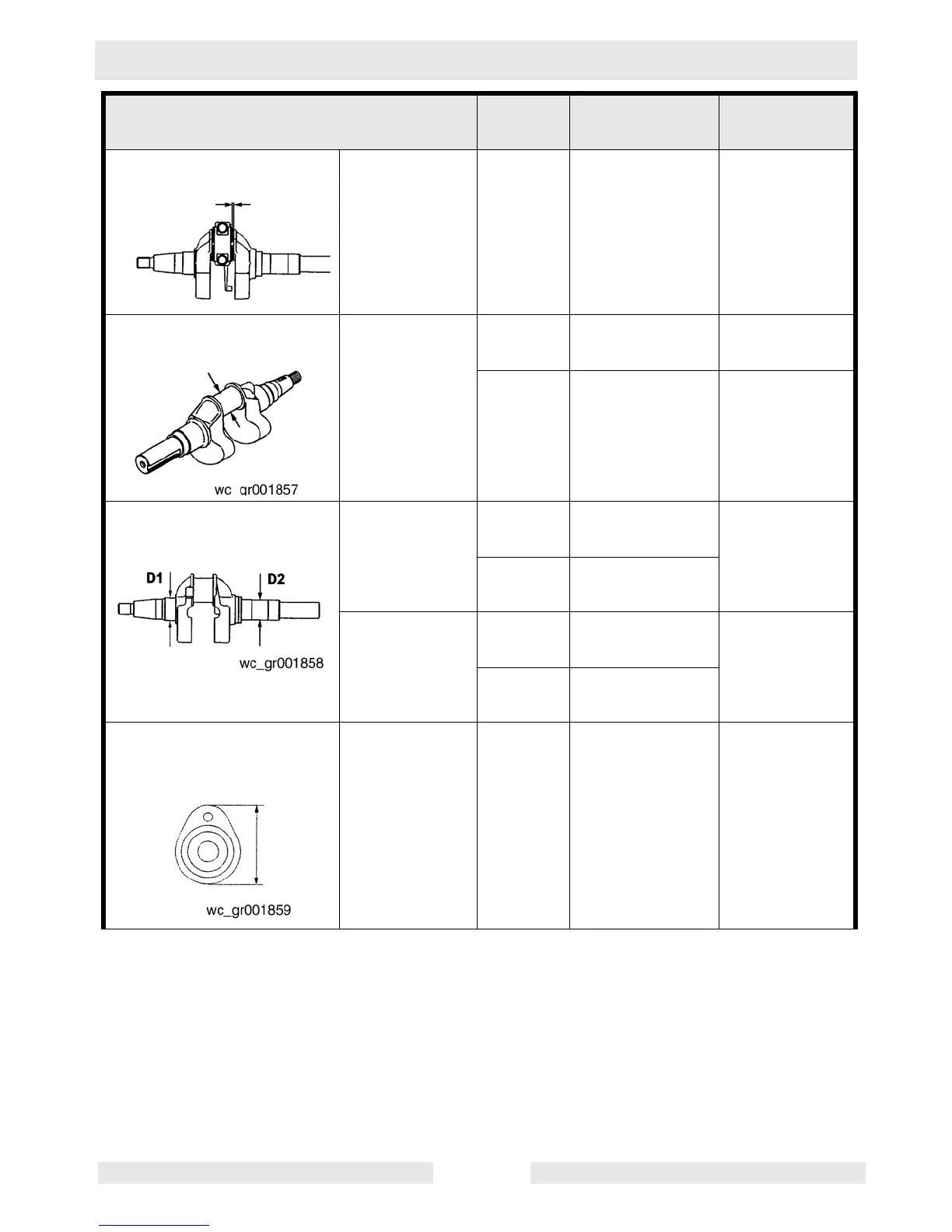

WM 130/170/270 Repair Clearance Data and Limits Table
wc_tx000385gb.fm 101
Large end side clearance
WM 130
WM 170
WM 270
0.100–0.780
(0.040–0.307)
1.0
(0.0394)
Crankshaft
Crank pin outer diameter
WM 130
WM 170
29.967–29.980
(1.1798–1.1803)
29.85
(1.1752)
WM 270
33.967–33.980
(1.3373–1.3378)
33.85
(1.3327)
Journal outer diameter
D
1
WM 130
WM 170
27.988–27.997
(1.1019–1.1022)
WM 270
29.988–29.997
(1.1806–1.1810)
D
2
WM 130
WM 170
24.988–24.997
(0.9838–0.9841)
WM 270
29.988–29.997
(1.1806–1.1810)
Camshaft
Cam peak height
(intake and exhaust)
Cam peak
height
WM 130
WM 170
WM 270
29.028–29.128
(1.1428–1.1468)
28.98
(1.1409)
Item Model Standard
mm (in.)
Limit
mm (in.)
