30
EPG-SPRINT / EPG-SPRINT X
P_01743
EPG
SPRINT X
2x
2x
0
%
100
%
kV
80
60
40
20
100
Tri Cor
5
4
3
2
1
120
80
40
20
10
10
20
30
40
50
60
70
80
90
Ø
12
10
11
9
8
m /h
2.0
3.0
0.5
0.3
0.1
1.5
3
5.5
4.5
3.5
2.5
Tri
μA
28 27 30 29 31 32 37 35 2434 36 33
1 2 3 4 20 22 23 18 13 1921
12
8
11
7
10
6
9
25
26
16
17
15
14
5
SERVICE MANUAL
VERSION 09/2017 ORDER NUMBER DOC2309350
5.6 OPERATING ELEMENTS OF EPGSPRINT X/EPGSPRINT XE

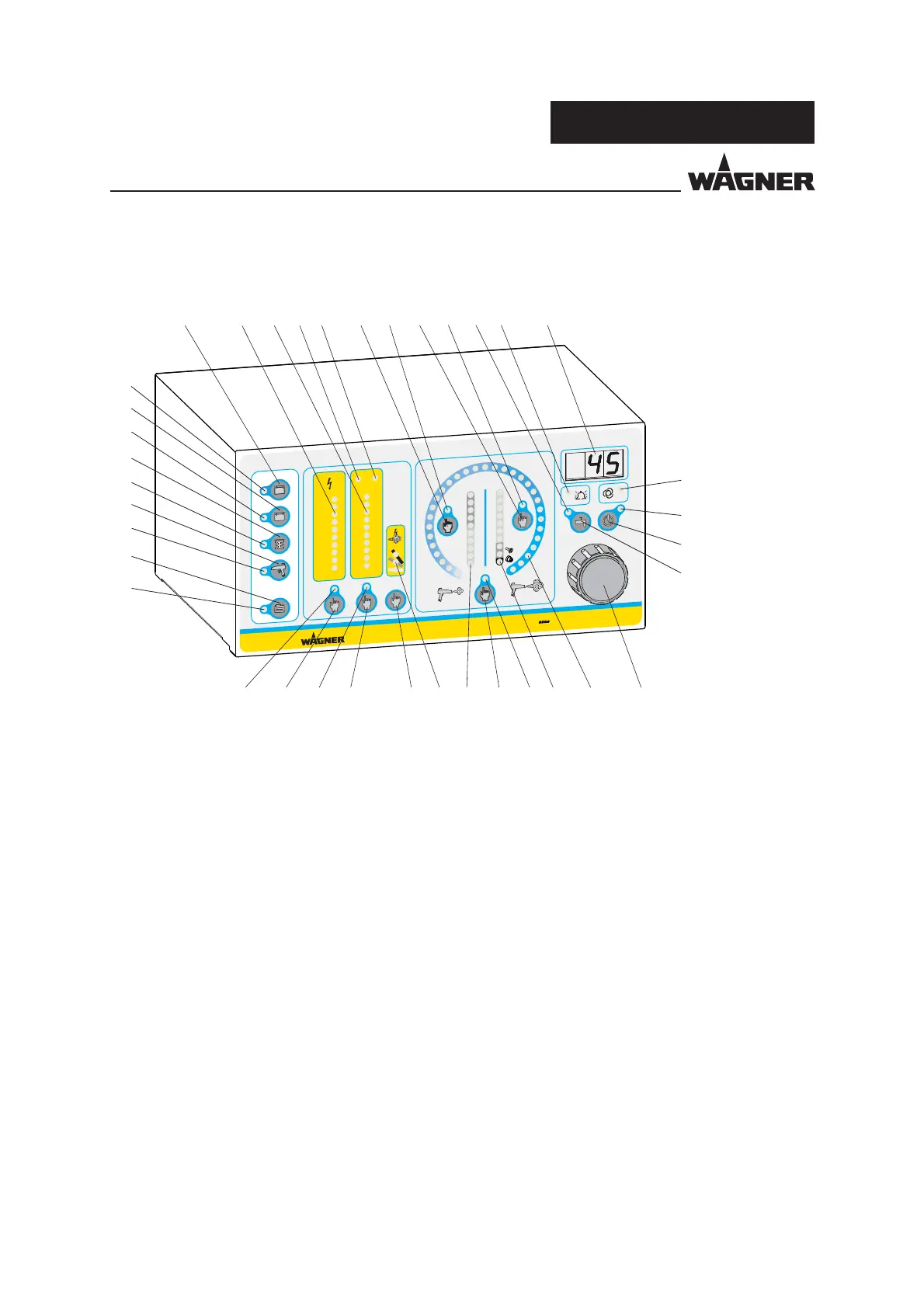

5.6.1 OVERVIEW OF CONTROL PANEL FRONT SIDE
1 Illuminated display "High voltage"
– Lights up green
– Display range: 0-100 kV
Resolution 10 kV
– Single LED display: Nominal voltage
– Bar display: Working voltage
2 Illuminated display: "Corona or Tribo Current"
– Lights up green
Tribo scale:
– When a Tribo gun is connected and selected
– Bar display: When powder feed is activated
– Display range: 0-5 μA
Resolution 0.5 μA
Corona scale:
– When a Corona gun is connected and selected
– Display and adjusting range: 0 [5]-120 μA,
0 [5]-20 μA resolution 5 μA
20-40 μA resolution 10 μA
40-120 μA resolution 20 μA
– Single LED display: "Trigger Point of Current Limitation"
– Bar display: Corona current
