55
EPG-SPRINT / EPG-SPRINT X
P_01385
1
2
P_01386
SERVICE MANUAL
VERSION 09/2017 ORDER NUMBER DOC2309350

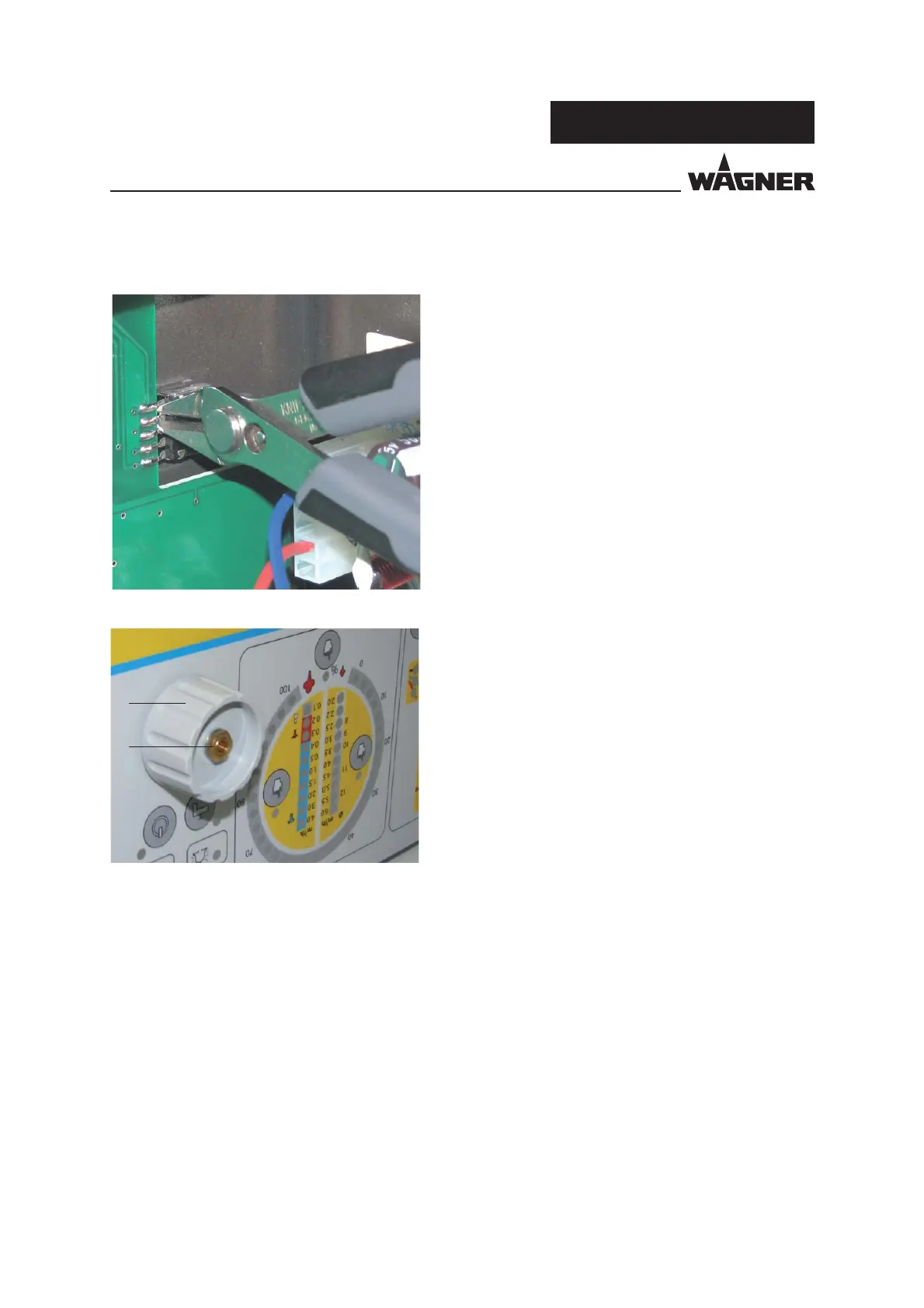

7.4 REPLACING THE INCREMENTAL ENCODER
Procedure:
1. Use side cutter to cut through connection wires.
This makes it easier to unsolder the individual wires
from the print.
2. Remove cover from rotary knob 1.
3. Unscrew nut 2 and remove rotary knob 1 from axis.
4. Unscrew nut from axis and remove encoder from
control unit.
5. Insert new encoder into drilled hole and fasten with
nut.
Note:
Ensure O-ring is seated correctly, otherwise seal integrity
is not guaranteed.
6. Attach rotary knob 1 to axis and fasten with nut 2.
7. Place cover on rotary knob 1.
8. Solder encoder with connection wires.
