WAGNER EPG-SPRINT - Manual Gun with External Control; Recipe Selection Input; Selection Via Pulse Length

84
EPG-SPRINT / EPG-SPRINT X
2x
2x
50ms
100ms
150ms
200ms
+/- 10%
P_03255
SERVICE MANUAL
VERSION 09/2017 ORDER NUMBER DOC2309350
12.3 MANUAL GUN WITH EXTERNAL CONTROL
12.4 RECIPE SELECTION INPUT
This input is analyzed only for the operating modes automatic gun mode and manual
system network.
Two signal protocols are available. However, they cannot be used at the same time.
These transfer protocols must be selected via con guration parameter C16.
(Function possible only for EPG-SPRINT X starting with software version B200/C200)
– Evaluation of the pulse lengths for switching between the four basic recipes.
The recipes 1, 2, 3, 4 can be selected (factory setting C16 = OFF).

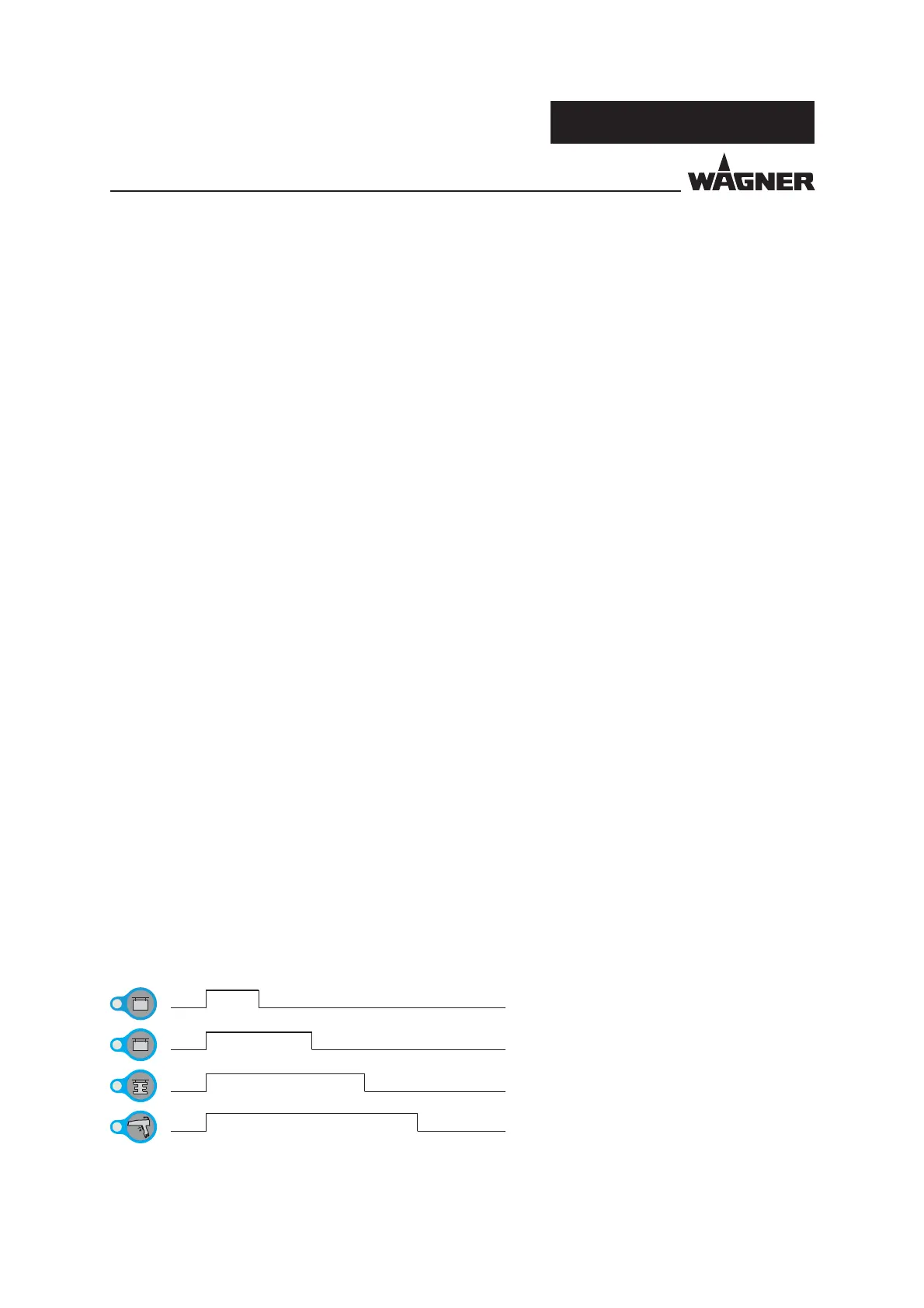

12.4.1 SELECTION VIA PULSE LENGTH
The operating mode must be selected speci cally via con guration parameter C26.
Hardware interface/signal description:
Pin 1 = fault output 24 VDC/300 mA maximum
Pin 2 = cleaning input ON/OFF 24 VDC/3.3 mA (high level: continuous  ushing ON)
Pin 3 = release input 24 VDC/3.3 mA (high level: release for coating and cleaning is present)
Pin 4 = supply output 24 VDC/300 mA maximum
Pin 5 = GND reference mass for signals
Pin 6 = recipe selection input 24 VDC/3.3 mA (for protocol, see Chapter 12.4)
