EPG-SPRINT / EPG-SPRINT X
1 2
P_01381
3
P_01382
4
P_01383
SERVICE MANUAL
VERSION 09/2017 ORDER NUMBER DOC2309350

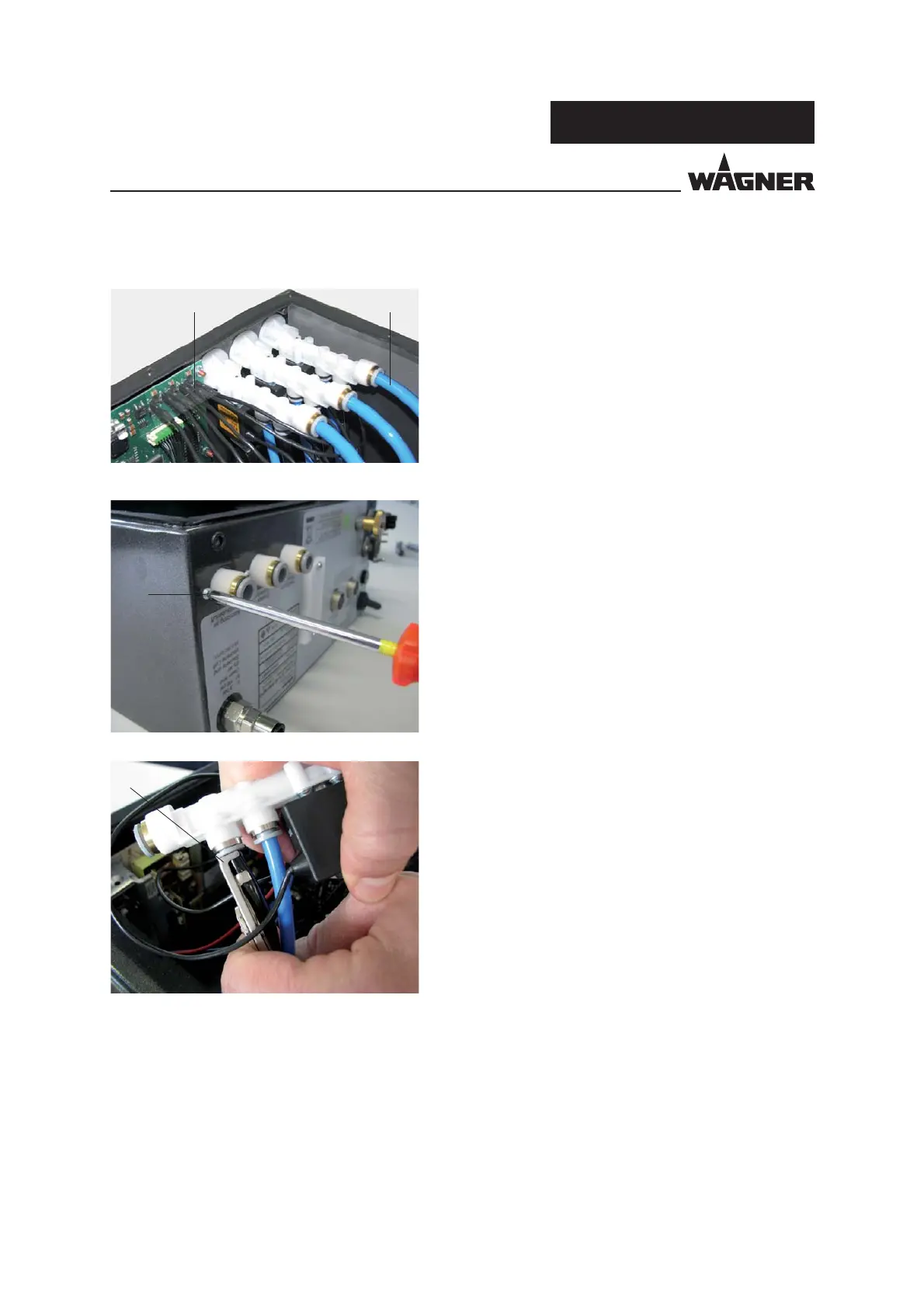

7.3 REPLACING A PROPORTIONAL VALVE
Procedure:
1. Remove cable 1 from connections.
2. Remove hose 2 from valve.
3. Unscrew screws 3 and carefully pry out valve.
4. Mark depth of insertion on both hoses.
5. Use tool 4 (order No. 2311907) to loosen black hose
from valve.
6. Use tool 4 to loosen blue hose from valve.
7. Insert blue hose on new valve up to mark.
8. Insert black hose on new valve up to mark.
Note:
The hoses must be inserted up to the mark, otherwise
functional problems may arise.
