WAGNER EPG-SPRINT - Disposal

47
EPG-SPRINT / EPG-SPRINT X
7
21
13
3
8
10
12
1417
4 5
6
9
5165
11
15
18
P_03256
SERVICE MANUAL
VERSION 09/2017 ORDER NUMBER DOC2309350

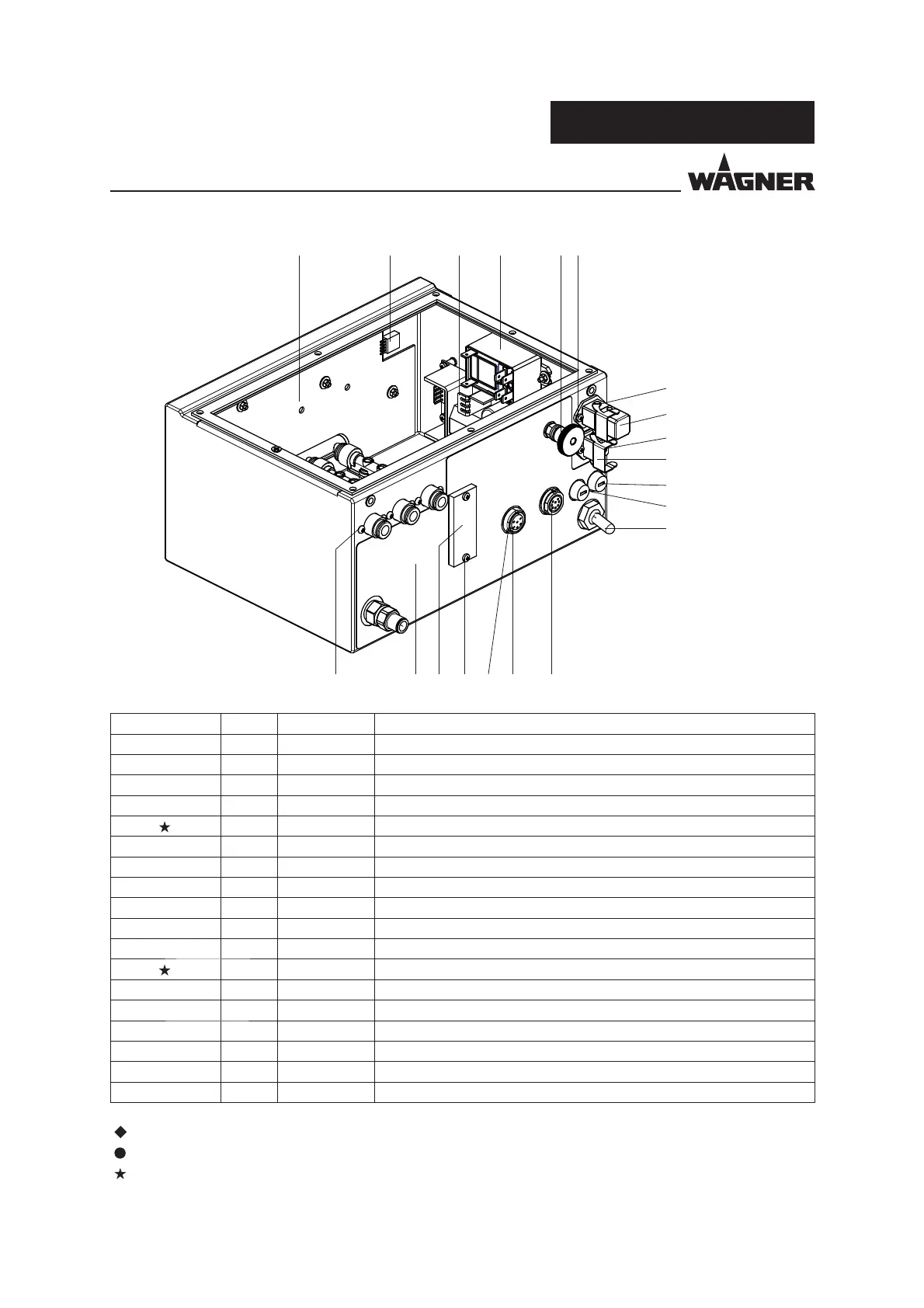

Pos K Stk Order No. Designation
1 1 2333661 EPG-SPRINT X display print, complete without encoder
2 1 2311875 Incremental encoder
3 1 2352818 Switching power supply
4 1 9910522 Knurled nut
5
1 2312335 Set of screws for EPG-SPRINT rear wall
6 1 9952587 Connector plug STASEI 200
7 1 360472 Cover cap
8 1 9952586 Socket STAKEI 200
9 1 9950330 Safety clip
10 2 9951116 Delay-action fuse, 2 AT
11 2 9955021 Fuse socket
12
1 241208 2-pin rocker switch complete with rubber sleeve
13 1 9952506 Socket
14 1 9952585 Socket
15 1 9955130 Protective cap
16 1 241323 Cover, white
17 1 2353215 EPG-SPRINT XE rear label (enter serial number manually)
18 1 2355060 Relay, 24VDC/30A
Wearing parts
Not part of the standard equipment, but available as a special accessory
Only available as a set
