2004919_i•en•2017-09-01 We reserve the right to make technical changes
7
3.2 Scope of delivery

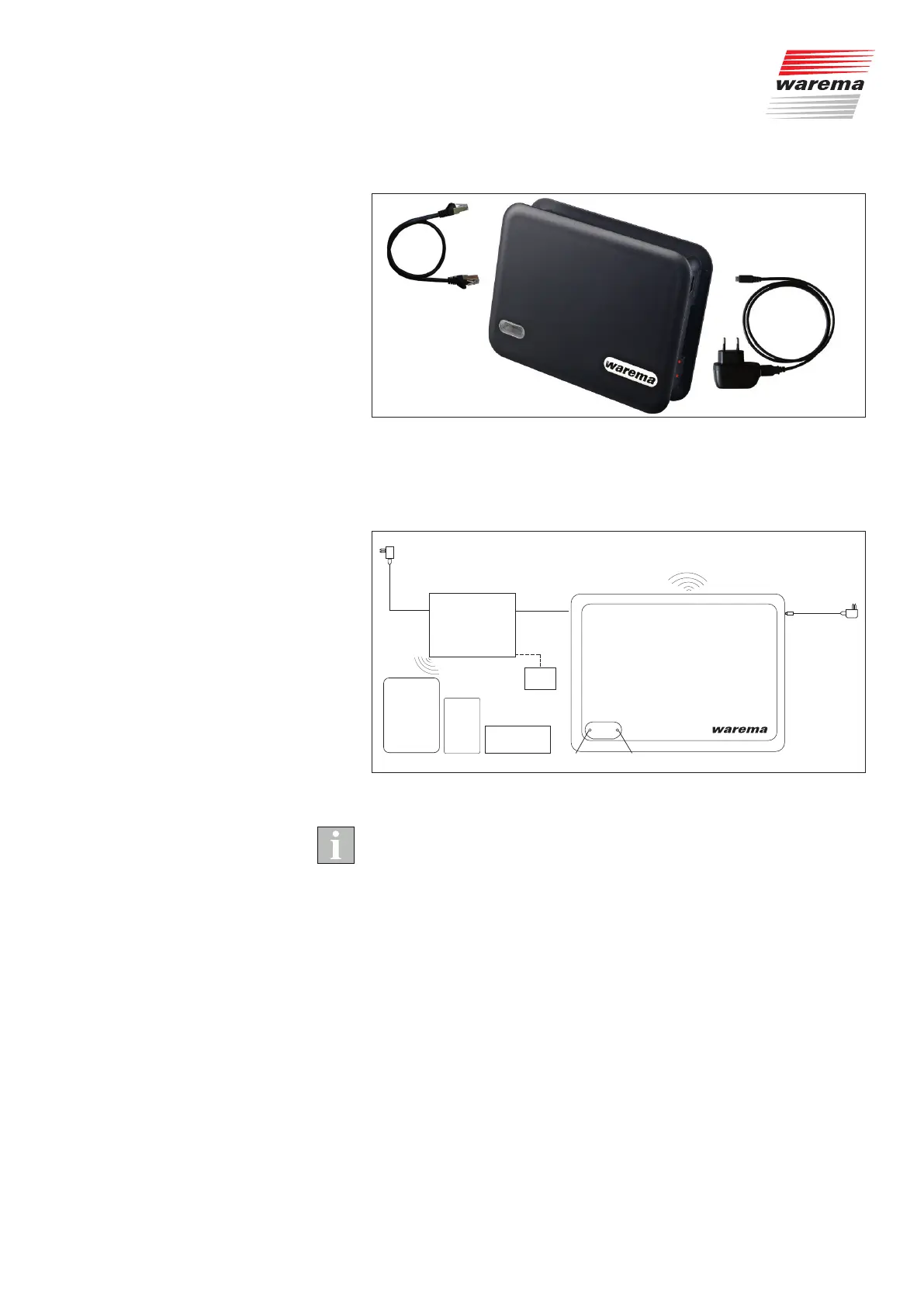

Fig. 1 WMS WebControl with the included LAN cable for the LAN connection
between the WebControl and WLAN router and a USB cable with a micro
USB connector and USB power supply unit
3.3 Connecting the WMS
WebControl
LEDs
PC
Laptop
Tablets
or
Smart-
phones
iPhone
WMS components
(actuator, plug receiver..)
USB power
supply unit
and
USB cable
Power supply unit connector
WLAN
Router
LAN
(optional)
LAN
RJ45
WMS WebControl
WLAN
Transmission LED
Status-LED
Fig. 2 Connecting the WMS WebControl
You require a configured router ➎.
One WMS WebControl ➊ can be connected per router.
To make the electrical connection, only use the supplied accessories to en-
sure that the system will operate properly.
"DHCP" must be enabled on the router in order for the IP address to be as-
signed automatically. If this is not possible, please read the information pro-
vided under "DHCP" (Chapter 9 on page 36).
Therefore, check that the unit is functioning properly before installing/setting
it up permanently. Both the WMS WebControl ➊ and the WMS components
➏ being controlled must have excellent radio reception.
