2004919_i•en•2017-09-01 We reserve the right to make technical changes
33
8 System menu
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑪⑫
⑩

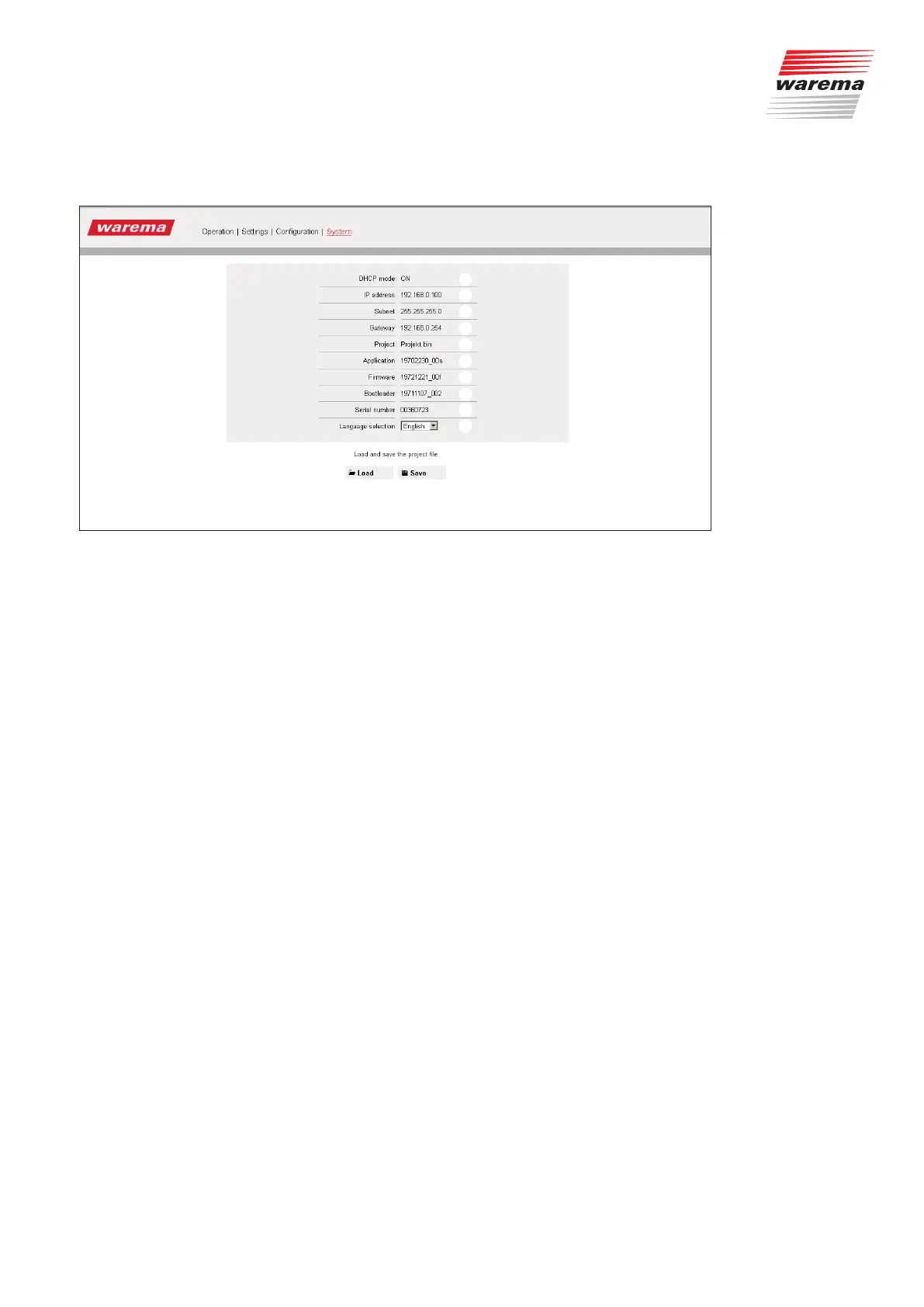

Fig. 28 WMS WebControl interface, "System" menu
Display of:
① DHCP "ON" or "OFF" (see Chapter 9 on page 36)
② IP address (assigned to the WMS WebControl by the router)
③ Subnet (assigned to the WMS WebControl by the router)
④ Gateway (assigned to the WMS WebControl by the router)
⑤ Project name (the name of the project is always "Projekt.bin")
⑥ Software version of the application (menu display in browser)
⑦ Firmware version
⑧ Bootloader version
⑨ WMS serial number (of the WMS WebControl)
⑪ Pull-down menu for the language selection (de, en, fr, no, sv, it, es)
⑫ Saves project on SD card
⑬ Loads project from SD card
System
