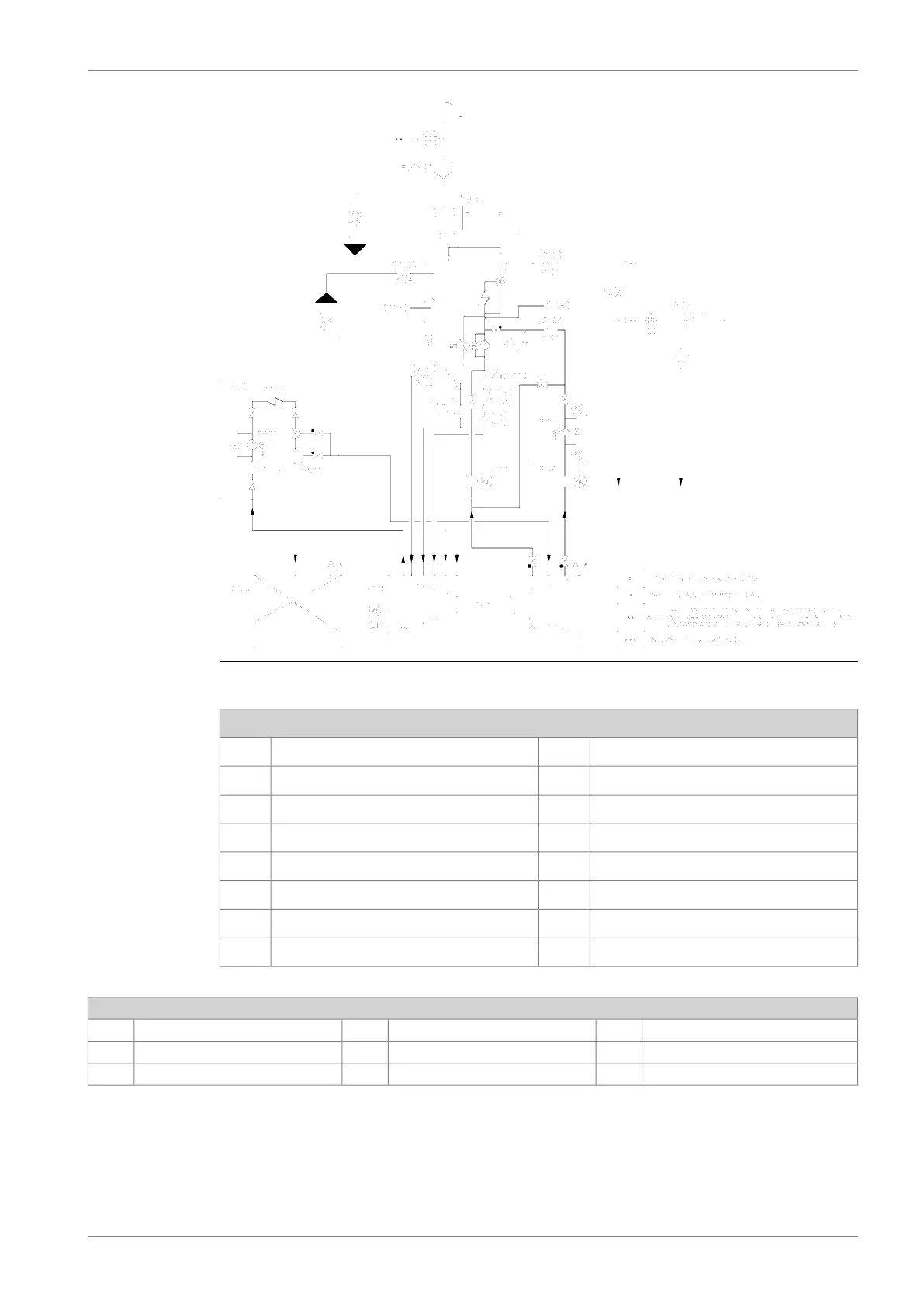

Fig 7-5 Example of lubricating oil system with engine driven pump (DAAF371774 A)
System components:
Separator unit2N01Diesel engine Wärtsilä L46DF01
Prelubricating oil pump2P02Gas detector02 **
Separator pump (separator unit)2P03Pressure control valve03
Separator (separator unit)2S01Heater (separator unit)2E02
Condensate trap2S02Suction strainer (main lube oil pump)2F01
System oil tank2T01Suction filter (separator unit)2F03
Sludge tank2T06Suction strainer (prelube oil pump)2F04
Flexible pipe connections2HX0Automatic filter (LO backflush)2F13
Pipe connections:
Flushing oil from autom filter223LO from priming pump206LO outlet202
Crankcase air vent701LO from el. driven pump208LO to engine driven pump203
Inert gas inlet723Lube oil, sample219
DBAD209883 7-9
7. Lubricating Oil SystemWärtsilä 46DF Product Guide
