11.2 Exhaust gas outlet

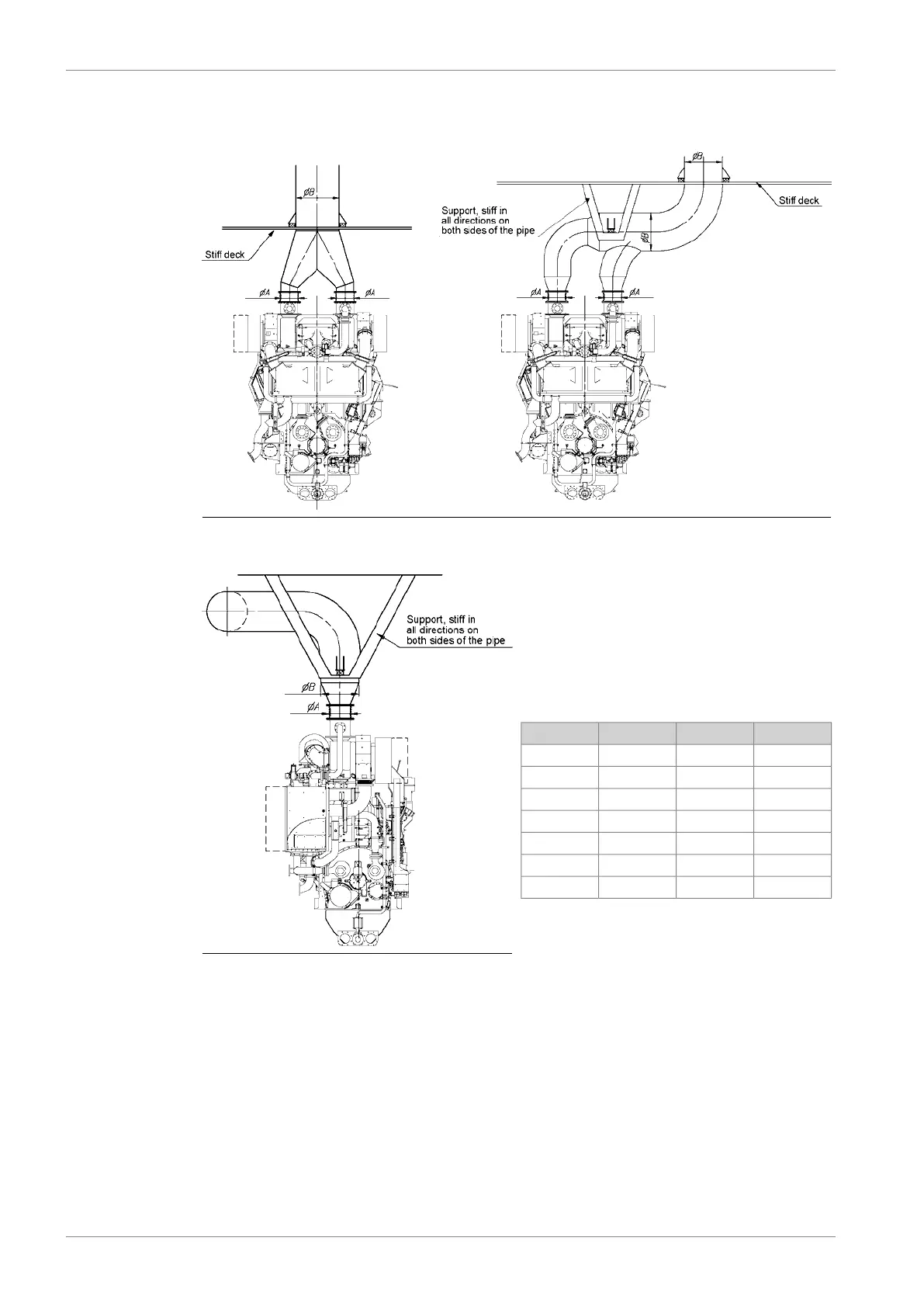

Fig 11-3 Exhaust pipe, diameters and support
Fig 11-4 Exhaust pipe, diameters and
support
B [mm]A [mm]TC typeEngine type
DN900650A170W 6L46DF
DN1000650A170W 7L46DF
DN1000750A175W 8L46DF
DN1100750A175W 9L46DF
DN1300650A170W 12V46DF
DN1400650A170W 14V46DF
D1500750A175W 16V46DF
11-4 DBAD209883
Wärtsilä 46DF Product Guide11. Exhaust Gas System
