11. Exhaust Gas System
11.1 Internal exhaust gas system

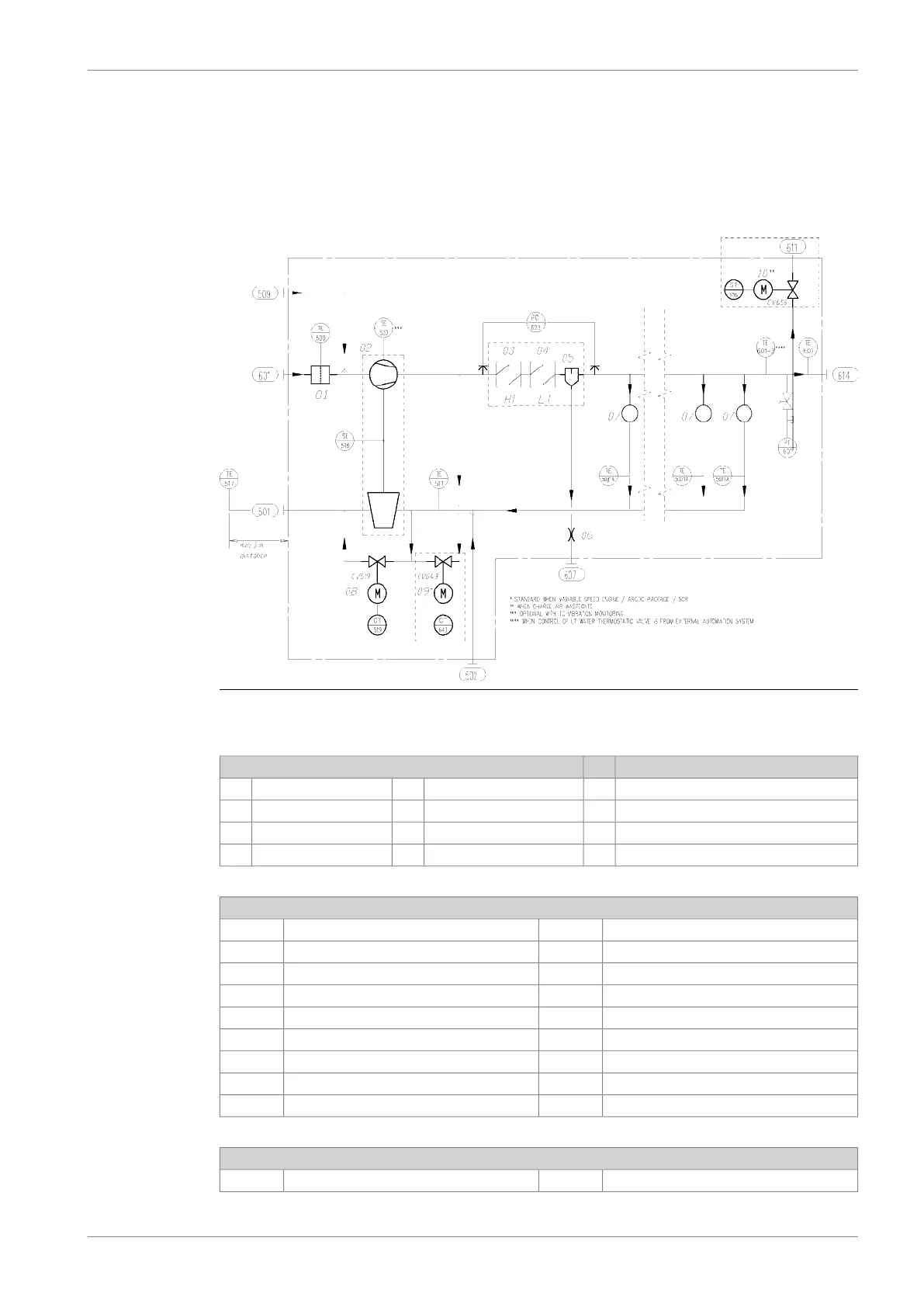

Fig 11-1 Internal combustion air and exhaust gas system, in-line engines
(DAAF447418)
System components:
Charge air by-pass valve09*Water mist catcher05Air filter01
Charge air wastegate valve10**Orifice06Turbocharger02
Cylinder head and valves07Charge air cooler (HT)03
Exh. wastegate valve08Charge air cooler (LT)04
Sensors and indicators
Exhaust wastegate controlCV519Exh. gas temperature cyl 0#ATE50#1A
Exhaust wastegate positionGT519Exh. gas temperature TC inletTE511
Charge air by pass controlCV643*Exh. gas temperature TC outletTE517
Charge air by pass positionGT643*TC A speedSE518
Charge air wastegate controlCV656**Charge air pressure, engine inletPT601
Charge air wastegate positionGT656**Air temperature TC inletTE600
TC vibrationSE520***Charge air temp engine inletTE601
Charge air temp engine inletTE601-2****
CAC pressure differencePDI623
Pipe connections
Air inlet to TC601Exhaust gas outlet501
