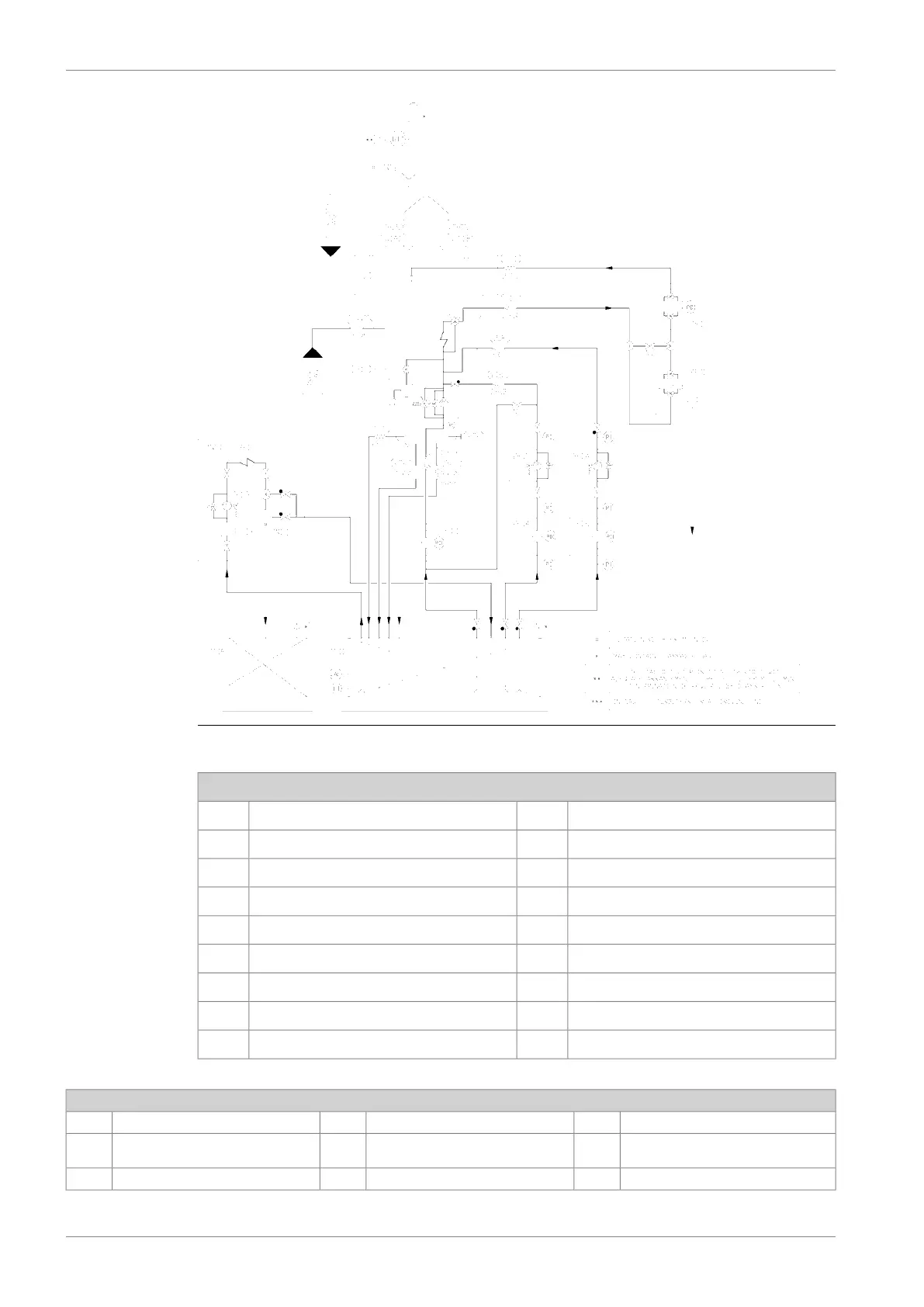

Fig 7-8 Example of lubricating oil system without automatic filter (DAAF371777 A)
System components:
Separator unit2N01Diesel engine Wärtsilä V46DF01
Prelubricating oil pump2P02Gas detector02 **
Separator pump (separator unit)2P03Heater (separator unit)2E02
Stand by pump2P04Suction strainer (main lube oil pump)2F01
Separator (Separator unit)2S01Automatic filter (LO)2F02
Condensate trap2S02Suction filter (separator unit)2F03
System oil tank2T01Suction strainer (prelube oil pump)2F04
Sludge tank2T06Safety filter (LO)2F05
Flexible pipe connections2H0XSuction filter (Stand by pump)2F06
Pipe connections:
Lube oil, sample219LO from priming pump206Lube oil inlet (to manifold)201
Crankcase air vent701
A/B
LO from el. driven pump208LO outlet202
Inert gas inlet723Lube oil from cooler212LO to engine driven pump203
7-12 DBAD209883
Wärtsilä 46DF Product Guide7. Lubricating Oil System
