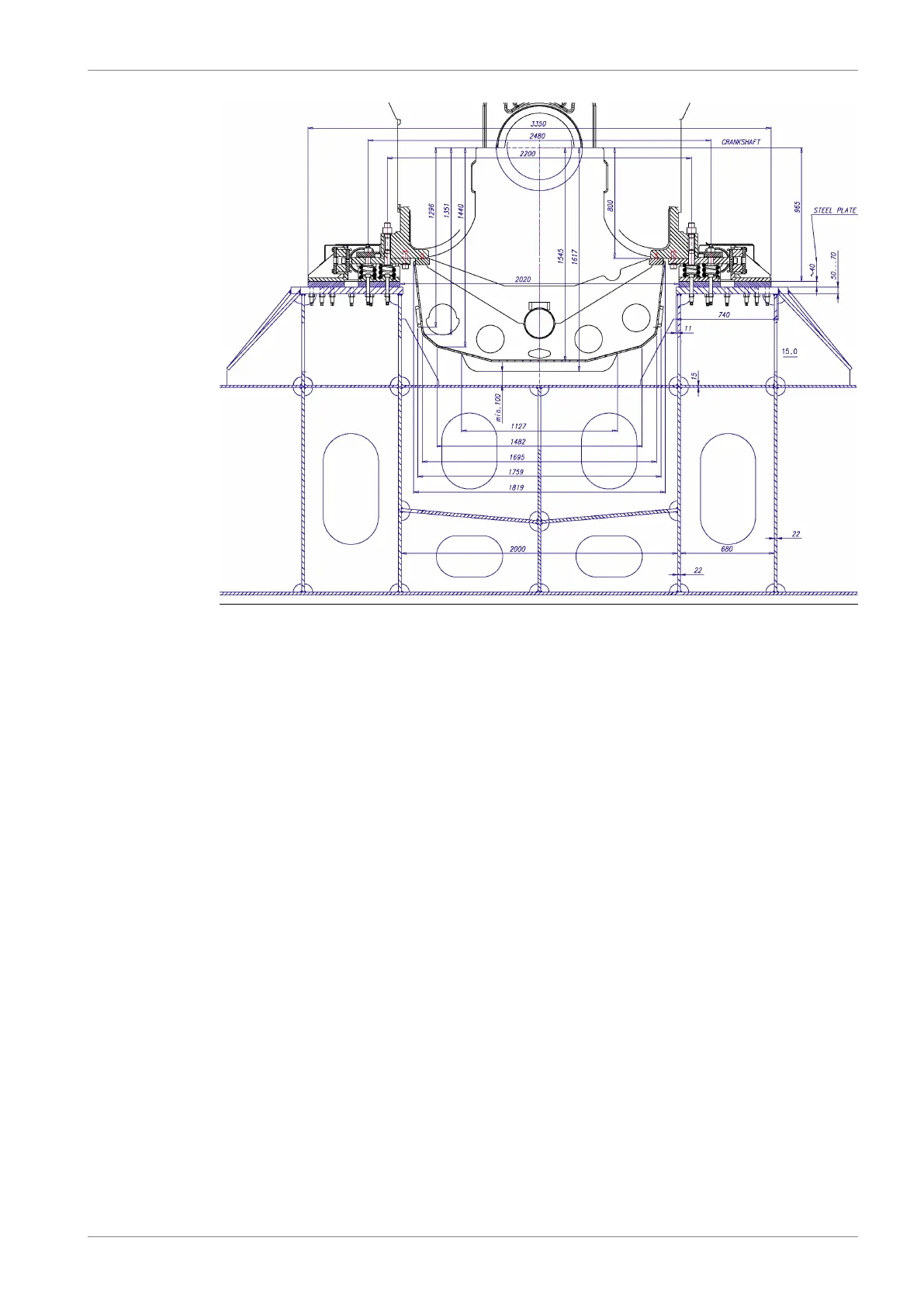

Fig 15-6 Seating and fastening, resiliently mounted V-engine (DAAE057412)
15.2.2.1 Flexible pipe connections
When the engine is resiliently mounted, all connections must be flexible and no grating nor
ladders may be fixed to the engine. Especially the connection to the turbocharger must be
arranged so that the above mentioned displacements can be absorbed, without large forces
on the turbocharger.
Proper fixing of pipes next to flexible pipe connections is not less important for resiliently
mounted engines. See the chapter Piping design, treatment and installation for more detailed
information.
