Sensors
and
overheating
thermostats
23

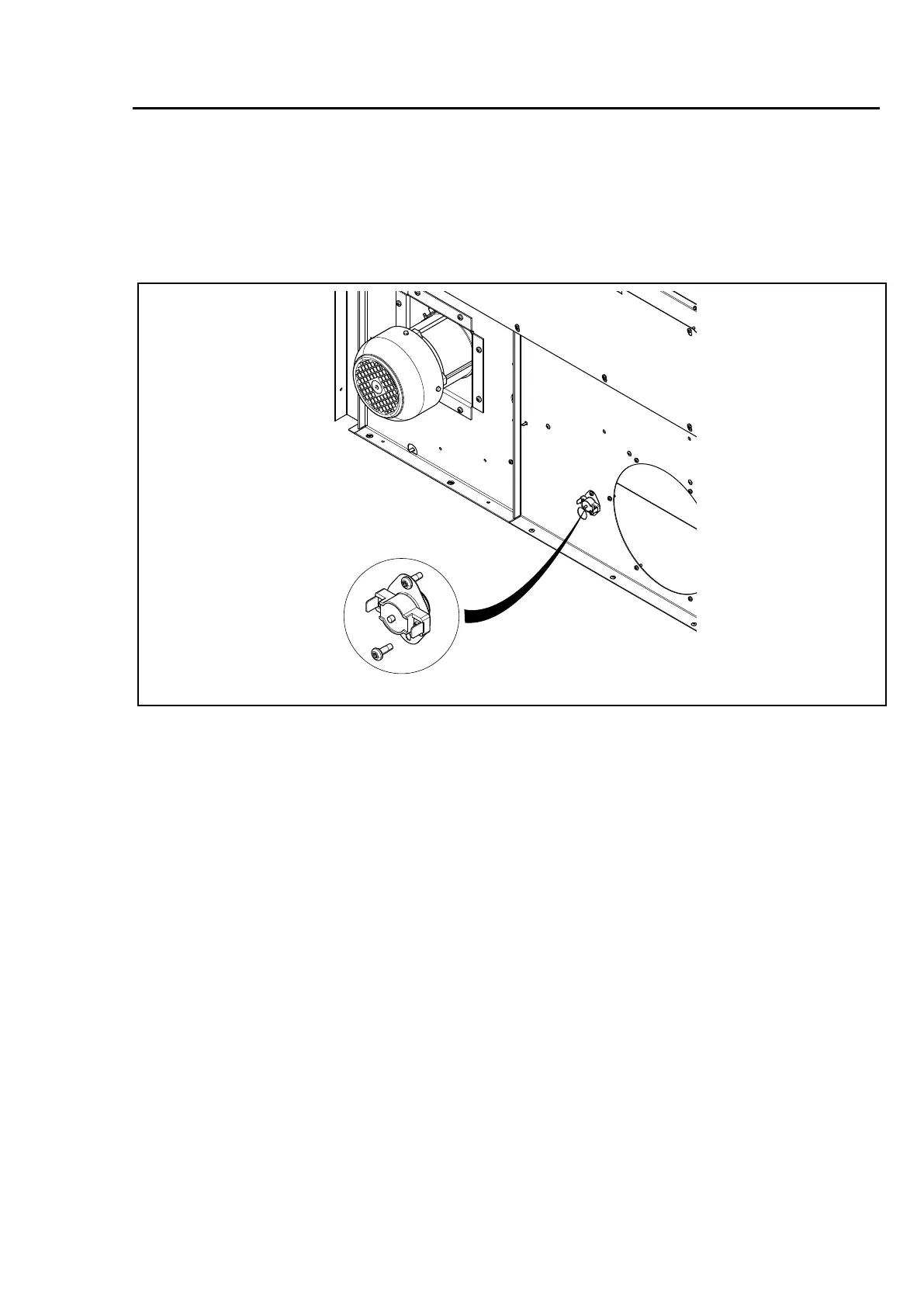

Replacement
of
overheating
thermostat
Disconnect
the
power
to
the
machine.
Demount
the
lower
rear
panel.
Disconnect
the
overheating
thermostat
and
remove
it.
Connect
the
new
overheating
thermostat.
g.W00251A
⑥
Remount
the
upper
rear
panel.
22
24
