Wascomat TD67 - External Connections to I;O Module Type 2

96
I/Omodules

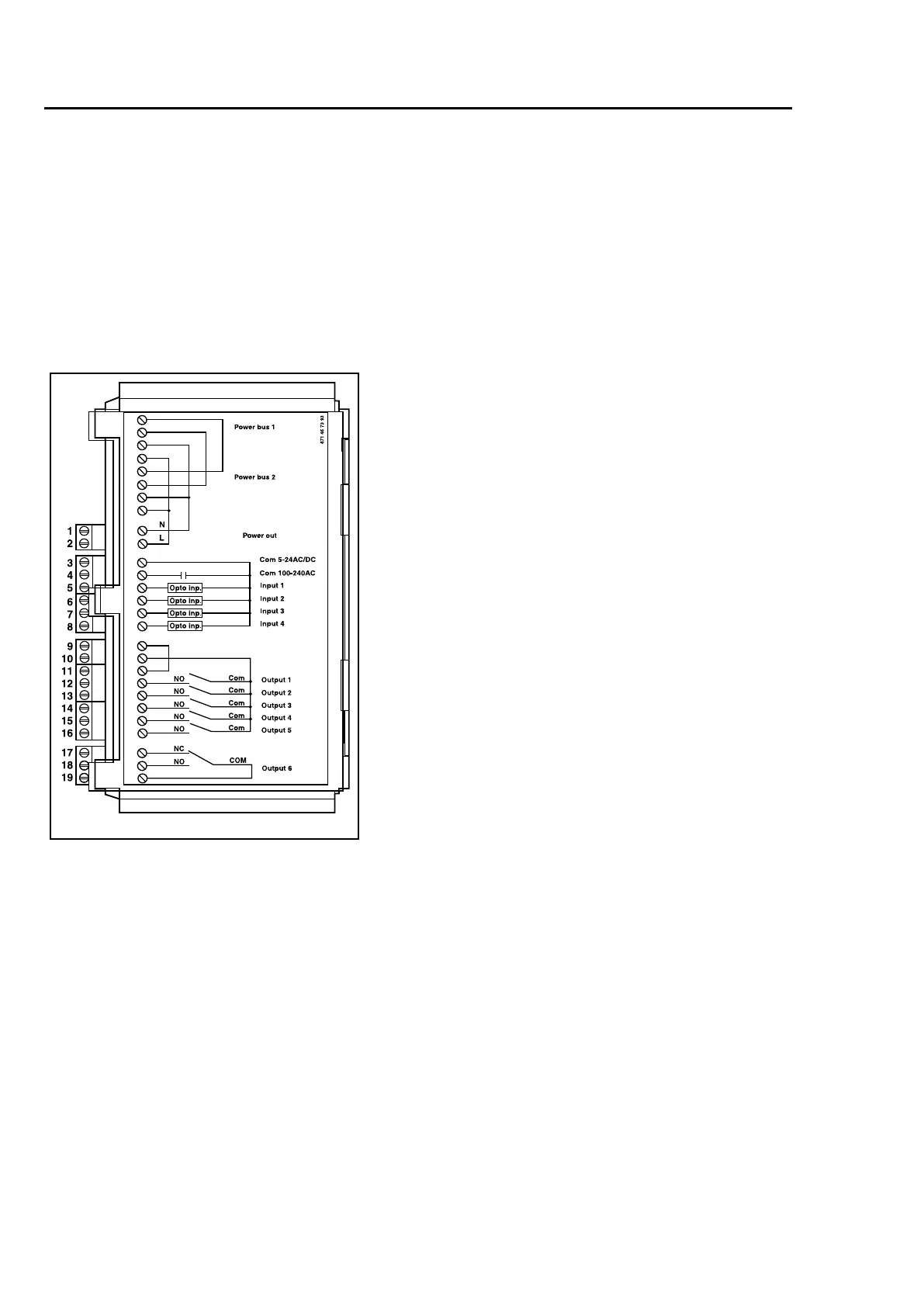

13.3ExternalconnectionstoI/Omoduletype2
Inputs
Thesignallevelmaybe5-24VDC/ACor100-240VAC.At5-24V,thesignalreferencemustbe
connectedto3andat100-240Vto4.
Note!
Donotmixpotentialsontheinputs.
Connectingexcessivevoltage(>24V)toconnection3maydamagetheI/Omodules.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
g.6236
131
