Wascomat TD67 - Central Payment (22 J)

98
I/Omodules

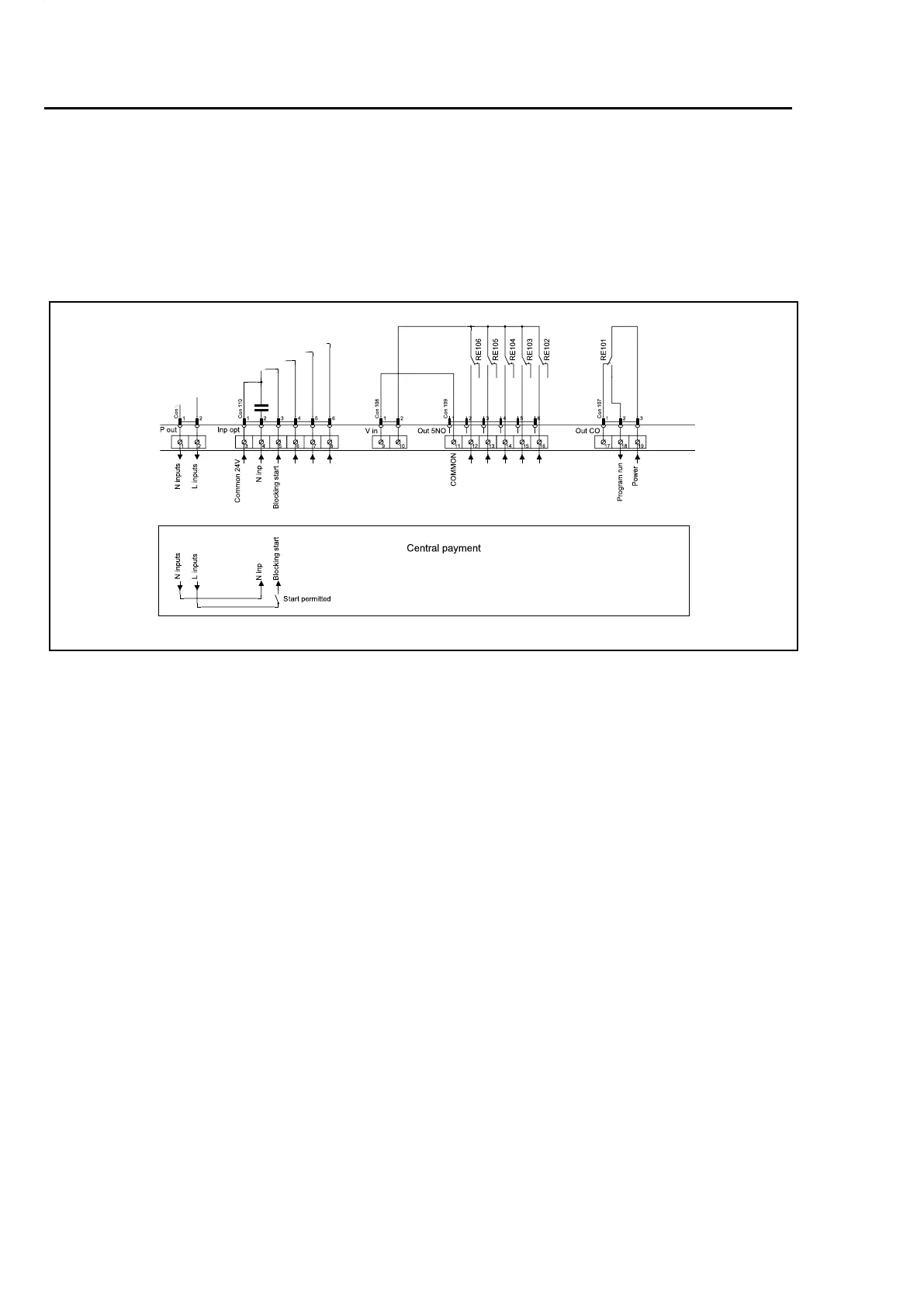

13.4.2Centralpayment(22J)
Thecentralpaymentofbookingsystemshalltransmitanactive(high)signaltothemachineonce
permissionhasbeengrantedtostartthemachine.Thesignalmustremainactive(high)untilthe
machinestarts.Thesignalcanbeeither230Vor24V.Inordertoreceiveafeedbacksignalonce
themachinehasstarted,230Vor24Vmustbeconnectedtoconnection19.Thefeedbacksignal
remainsactive(high)duringtheentireprogram.
P rogra m run
g.7439
133
