Heatingunit,gas
47

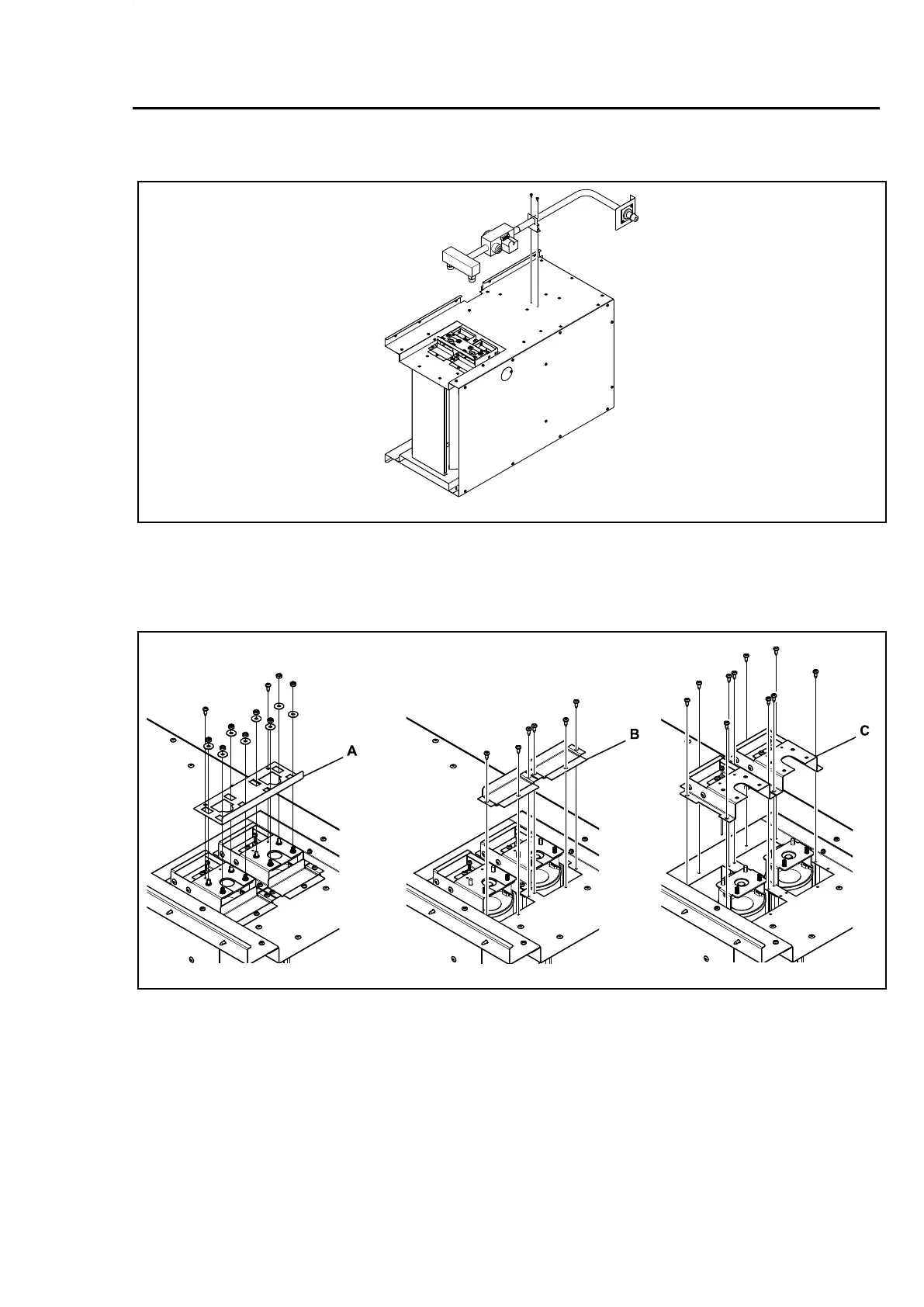

Demountthegasvalve.
g.7275
46
Demountthetwolockplates(A).Demountthetwoairreducingplates(B).Demountthetwo
brackets(C).
A
B
C
g.7277
47
