Wascomat TD67 - Page 73

Drum
73
Fastentheboltandthewasherandremountthebearinghouse.Usetighteningtorque20Nm±
3Nm.
Pushthebeltfromtheouterdrumontotheinnerdrumandmakesureitisinposition.

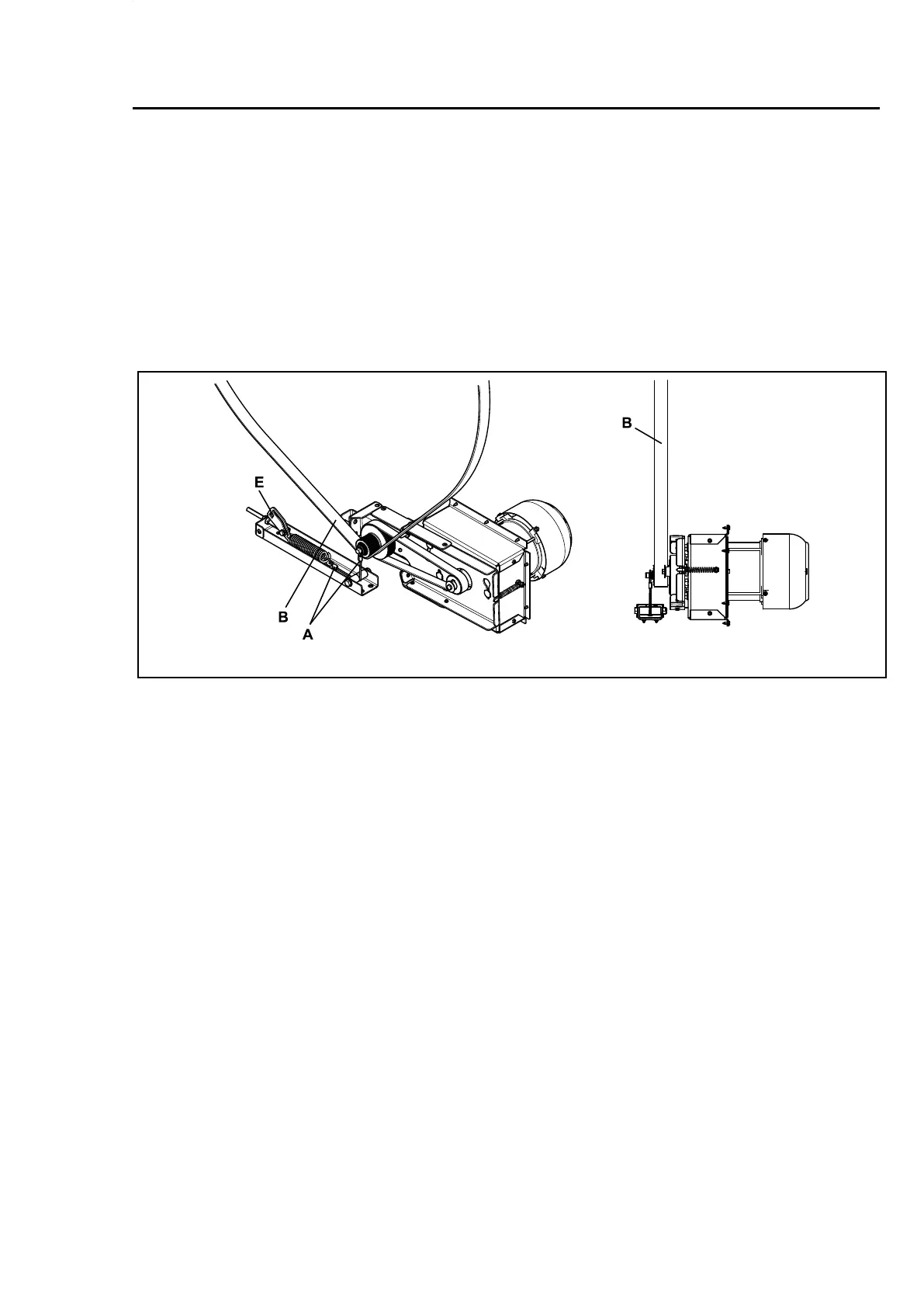

Fastenthebelt(B)andthewire(A).Rotatethedrumtomakesurethatthebeltisinposition.
Tightenthebelttensionerwithatorquewrenchbypullingthetensionplate(E)clockwiseuntil
itisinposition.
Checkthebelttensionwithafrequencymeaterorsimilar.Thefrequencyshallbe75Hz±5Hz.
Adjustifnecessary.
A
B
E
B
g.7220D
91
Remountthecoverplateandtherearpanels.
Note!
ThemachinewillNOTworkwithoutthecoverplate.
Remountthefrontpanelandthedoor.
