Drum
87

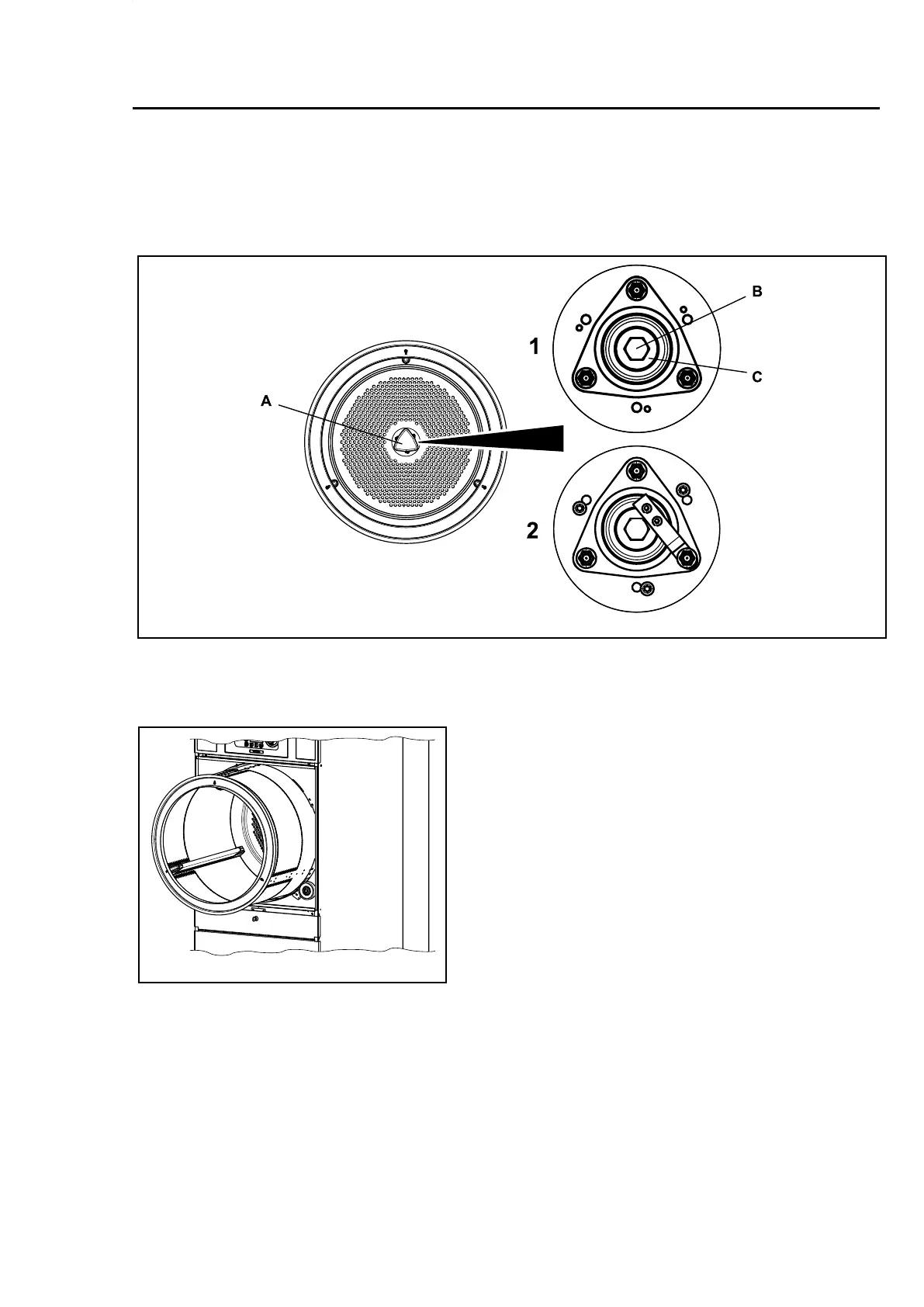

Removethescrewsandthebearinghouse(A).
1.ShowsamachinewithoutRMC.Removethebolt(B)andthewasher(C).
2.ShowsamachinewithRMC.LoosenthescrewandpulltheRMCangetothesideinorder
toremovethebolt(B)andthewasher(C).
A
1
2
B
C
g.7231A
119
Carefullyliftoutthedrum.Becarefulnottodamagethebelt.
g.7230B
120
