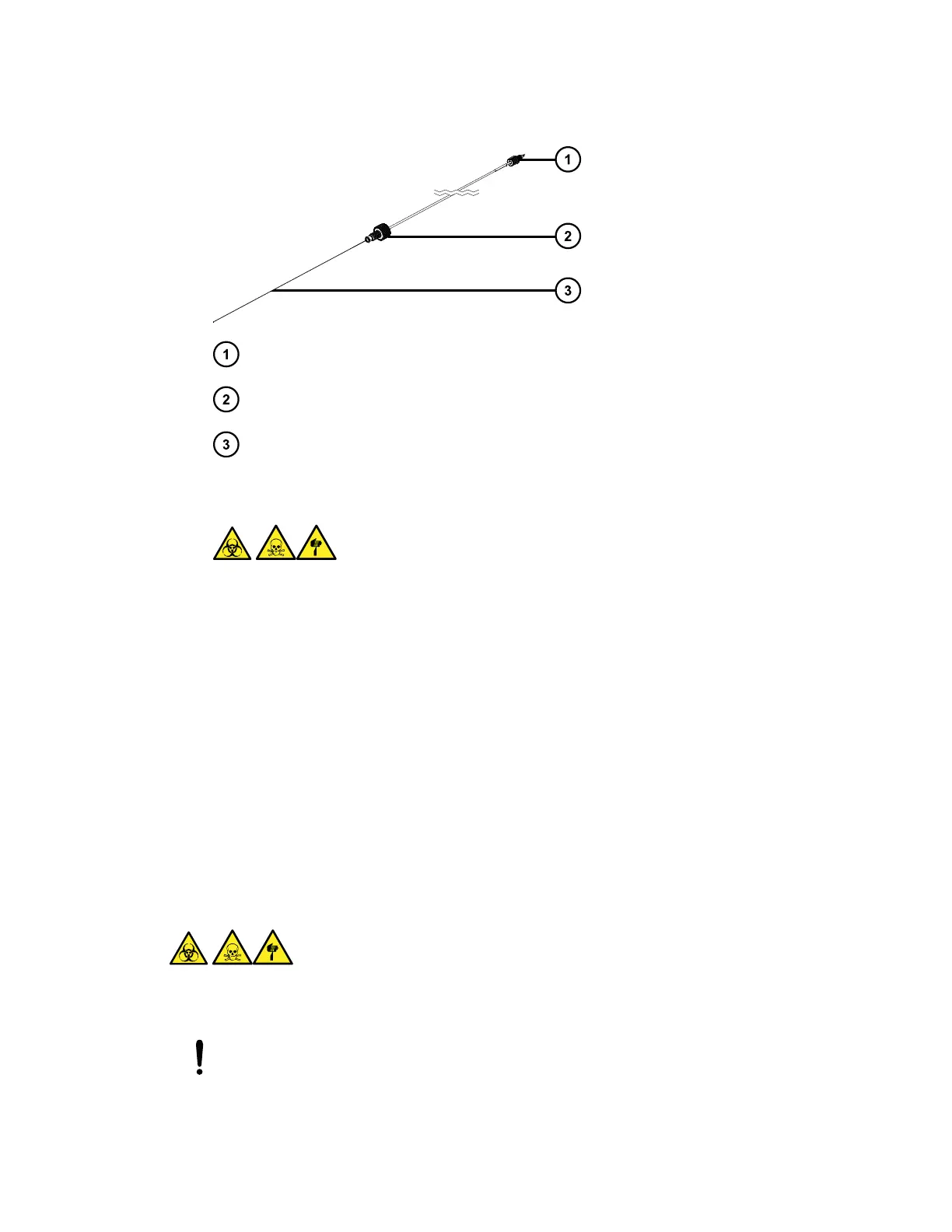

Figure 4–48: UniSpray probe assembly
PEEK fitting
Probe fitting
Probe capillary
3. Unscrew the probe fitting and pull the probe assembly out of the shaft inlet on top of the
source enclosure.
Warning: To avoid lacerations, puncture injuries, and possible contamination with
biologically hazardous and toxic materials, do not touch the sharp end of the capillary.
4. Dispose of the probe and fittings in accordance with local environmental regulations.
5. Install a replacement UniSpray probe assembly (see Installing the UniSpray probe
assembly (Page 136)).
4.23.2 Installing the UniSpray probe assembly
4.23.2.1 Installing the UniSpray probe assembly
Required materials
• Chemical-resistant, powder-free gloves
• UniSpray probe assembly
Warning: To avoid lacerations, puncture injuries, and possible contamination with biologically
hazardous and toxic materials, do not touch the sharp end of the capillary.
Notice: To avoid damaging capillaries, take great care when handling them; they are
extremely fragile. Always hold the blunt end, never the sharp end.
January 10, 2022, 715006200 Ver. 01 (previously released as Rev. A)
Page 136
