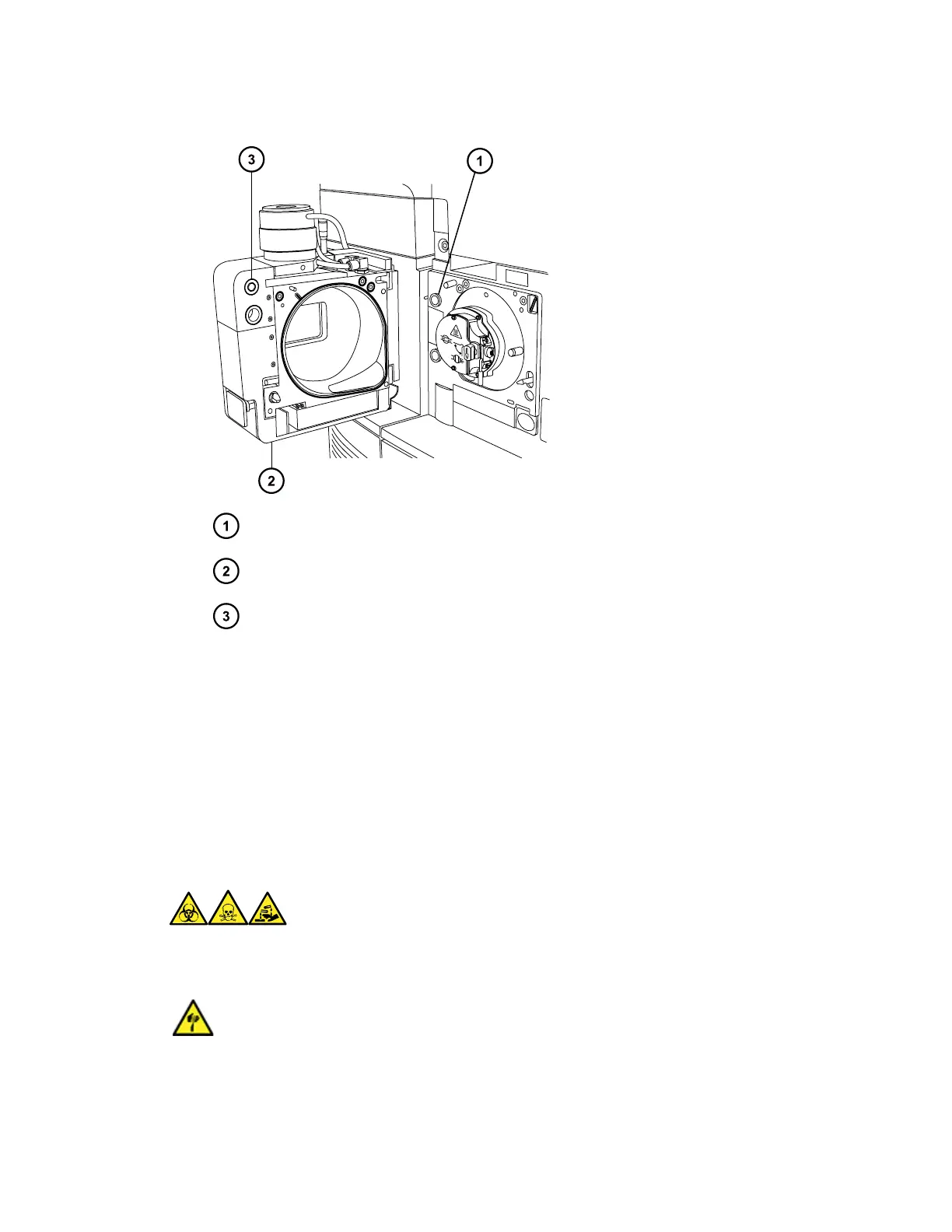

Figure 4–1: Removing the source enclosure
Supporting stud
Source enclosure
Cable storage positions
6. Store the cables neatly by plugging them into the cable-storage positions on the rear of the
source enclosure.
4.5.2 Fitting the source enclosure to the instrument
Required materials
Chemical-resistant, powder-free gloves
To fit the source enclosure to the instrument:
Warning: To avoid personal contamination with biologically hazardous, toxic, and corrosive
materials, wear chemical-resistant, powder-free gloves when performing this procedure.
Warning: To avoid puncture wounds, take great care while working with the source
enclosure open if one or both of these conditions apply:
• An ESI probe is fitted (the probe’s tip is sharp).
• A corona pin is fitted (the pin’s tip is sharp).
