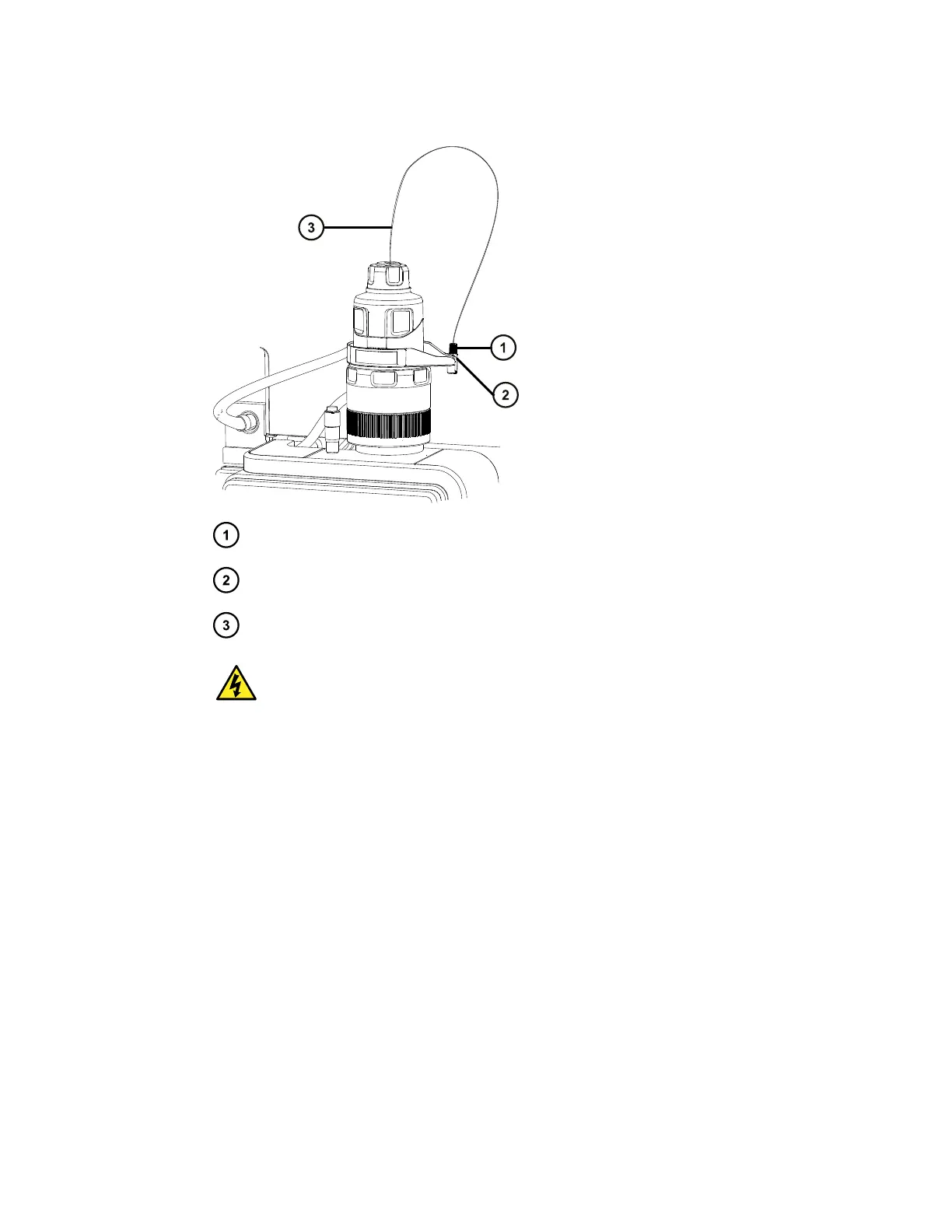

Figure 3–17: Inlet fitting holder
Probe inlet fitting
Inlet fitting holder
Probe assembly tubing
Warning: To avoid electric shock or solvent ignition, when connecting ESI or
UPC
2
source probes directly to non-Waters equipment, ensure that the liquid
outlet connection is grounded.
7. Connect the probe inlet fitting to the inlet system.
Note: If you are connecting to a UPC
2
system, see Connecting the probe assembly to a
UPC² system (Page 62).
3.1.7 Removing and refitting the probe inlet fitting
To feed the probe assembly through narrow channels, you might need to remove the probe inlet
fitting, and then refit it on the other side of the channel. The inlet end of the probe assembly
features a spring-loaded design to minimize dead-volume at the connection to the inlet.
Requirement: When connecting the probe assembly to an ACQUITY UPC² system, you must
use the supplied gold-plated UPC² fitting. See Connecting the probe assembly to a UPC² system
(Page 62).
January 10, 2022, 715006200 Ver. 01 (previously released as Rev. A)
Page 60
