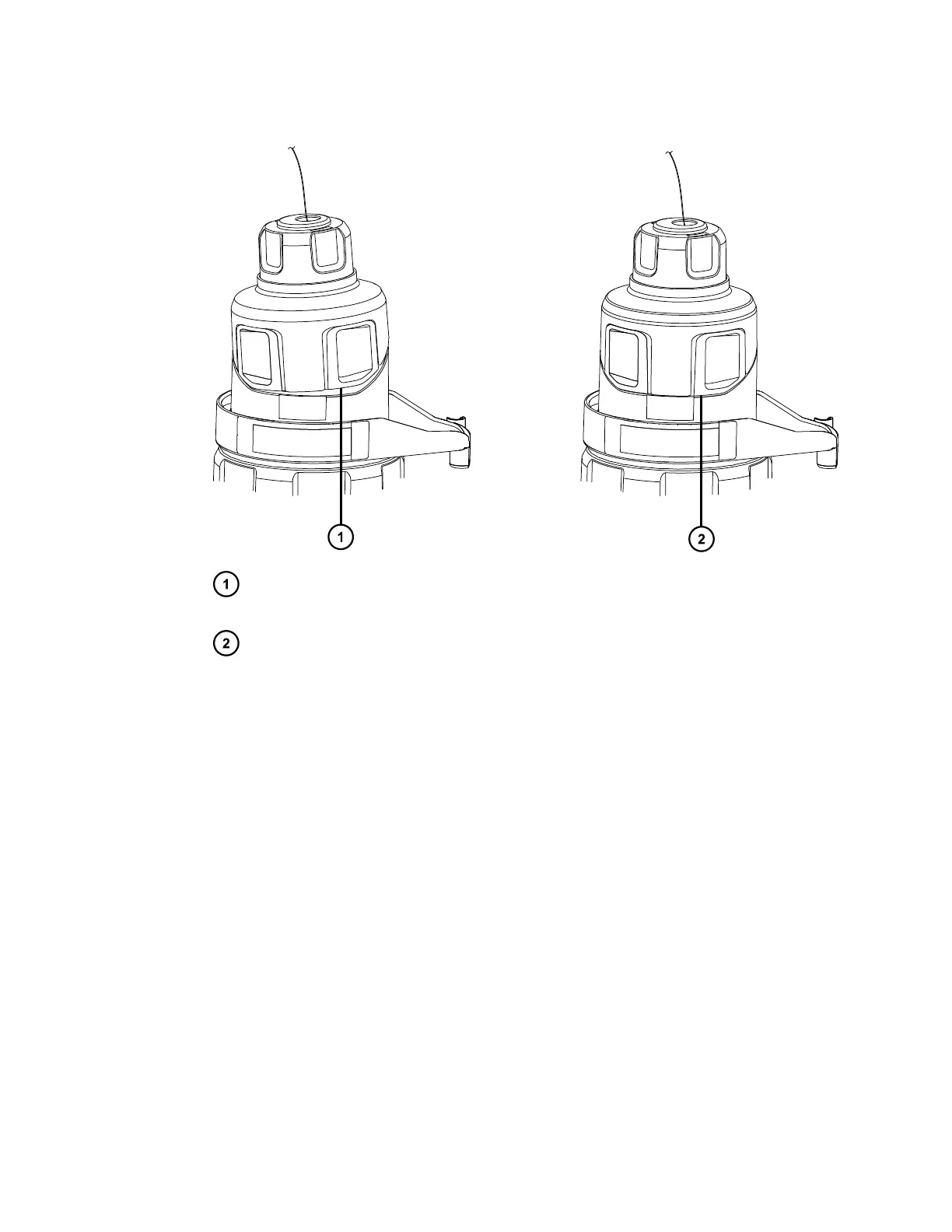

Figure 3–16: Seating the probe adapter cap
Probe adapter cap seated incorrectly: edge does not align with the edge of the
probe adapter
Probe adapter cap seated correctly: edge aligns with the edge of the probe adapter
Note: If you fit the probe adapter cap when the source enclosure is closed and the mass
spectrometer is in Operate, the high-voltage supply to the probe turns on and the
instrument performs a pressure test. To prevent gas escaping audibly through the probe
adapter, ensure that the instrument is not in Operate mode until a probe assembly is
installed. You must remove the probe adapter cap before installing the probe assembly.
Tip: If you are not immediately connecting the probe assembly to the inlet system, insert
the probe inlet fitting into the inlet fitting holder.
