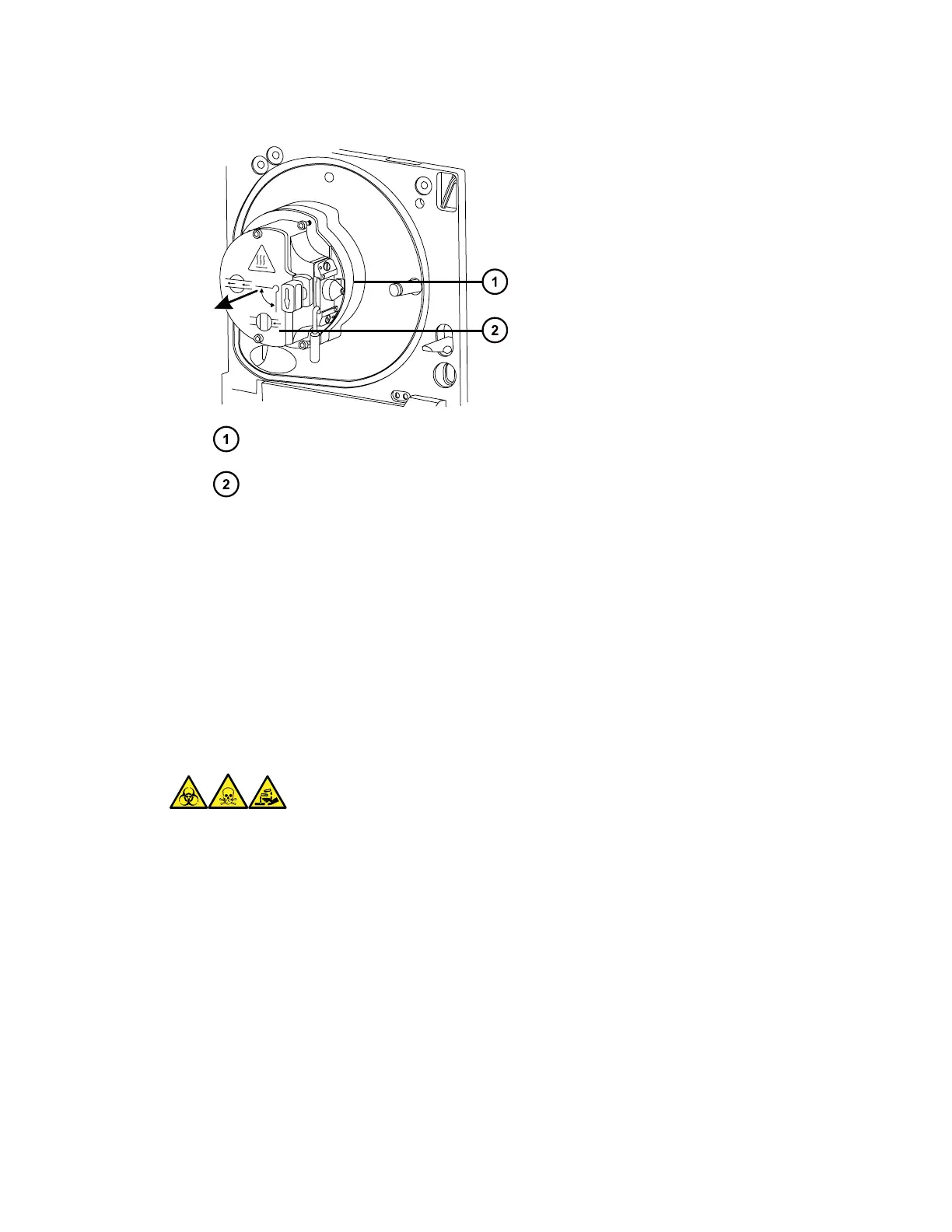

Figure 4–17: Removing the ion block assembly
PEEK ion block support
Ion block assembly
4.13.2 Disassembling the source ion block assembly
Required materials
• Chemical-resistant, powder-free gloves
• Combined 2.5-mm hex wrench and cone extraction tool
• O-ring removal kit
To disassemble the ion block assembly:
Warning: To avoid personal contamination with biologically hazardous, toxic, and corrosive
materials, wear chemical-resistant, powder-free gloves when performing this procedure.
1. Ensure that the source isolation valve is closed.
January 10, 2022, 715006200 Ver. 01 (previously released as Rev. A)
Page 98
