Notice: To avoid damage, do not open the source isolation valve before fitting
the sampling cone assembly to the ion block assembly.
4.12.2 Disassembling the sampling cone assembly
Required materials
• Chemical-resistant, powder-free gloves
• Combined 2.5-mm hex wrench and cone extraction tool
To disassemble the sampling cone assembly:
Warning: To avoid personal contamination with biologically hazardous, toxic, and corrosive
materials, wear chemical-resistant, powder-free gloves when performing this procedure.
1. Retrieve the combined 2.5-mm hex wrench and cone extraction tool from its storage
location behind the source enclosure.

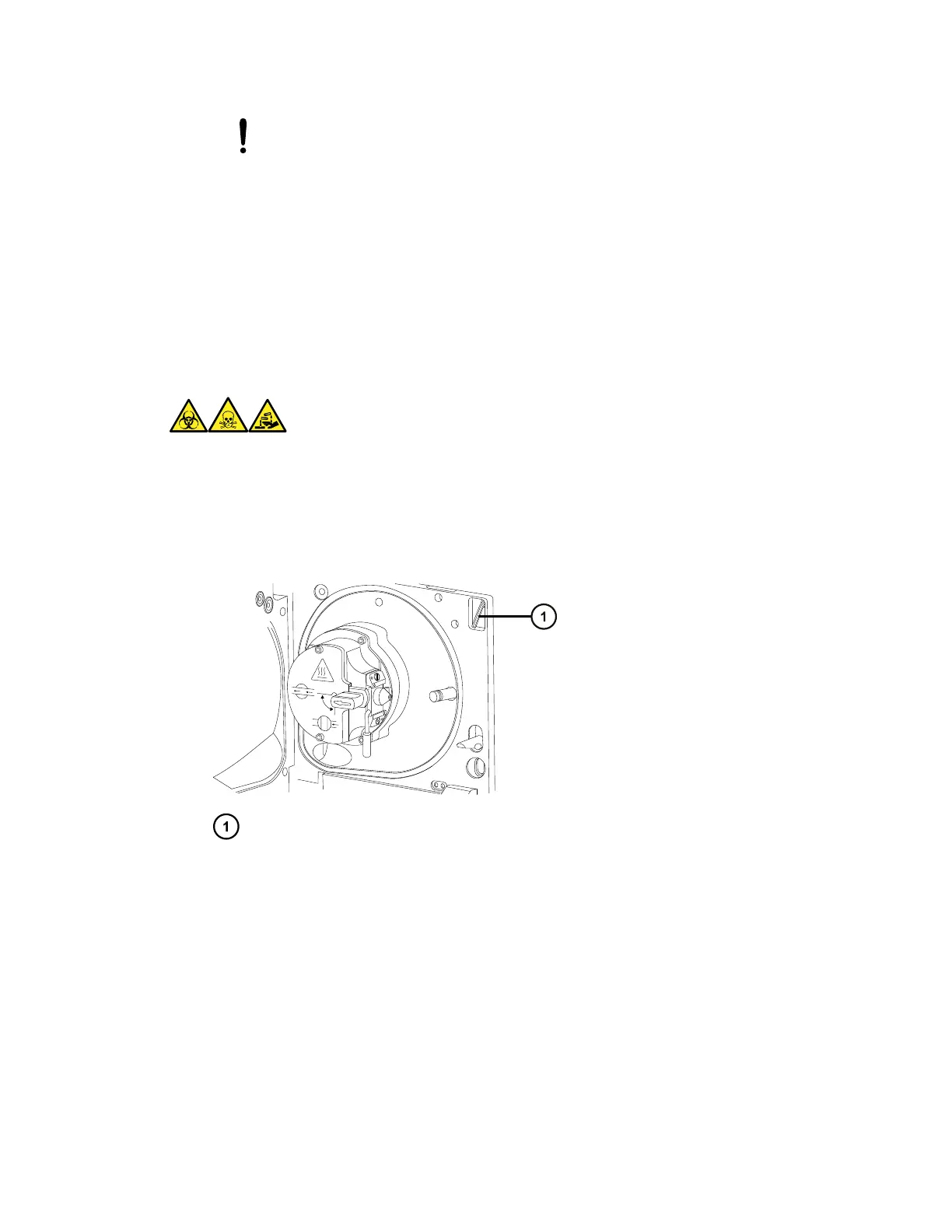

Figure 4–9: Cone extraction tool location
Combined 2.5-mm hex wrench and cone extraction tool
2. Slide the collar to the end of the tool.
January 10, 2022, 715006200 Ver. 01 (previously released as Rev. A)
Page 90
