Waters Xevo TQ-S cronos - Page 37

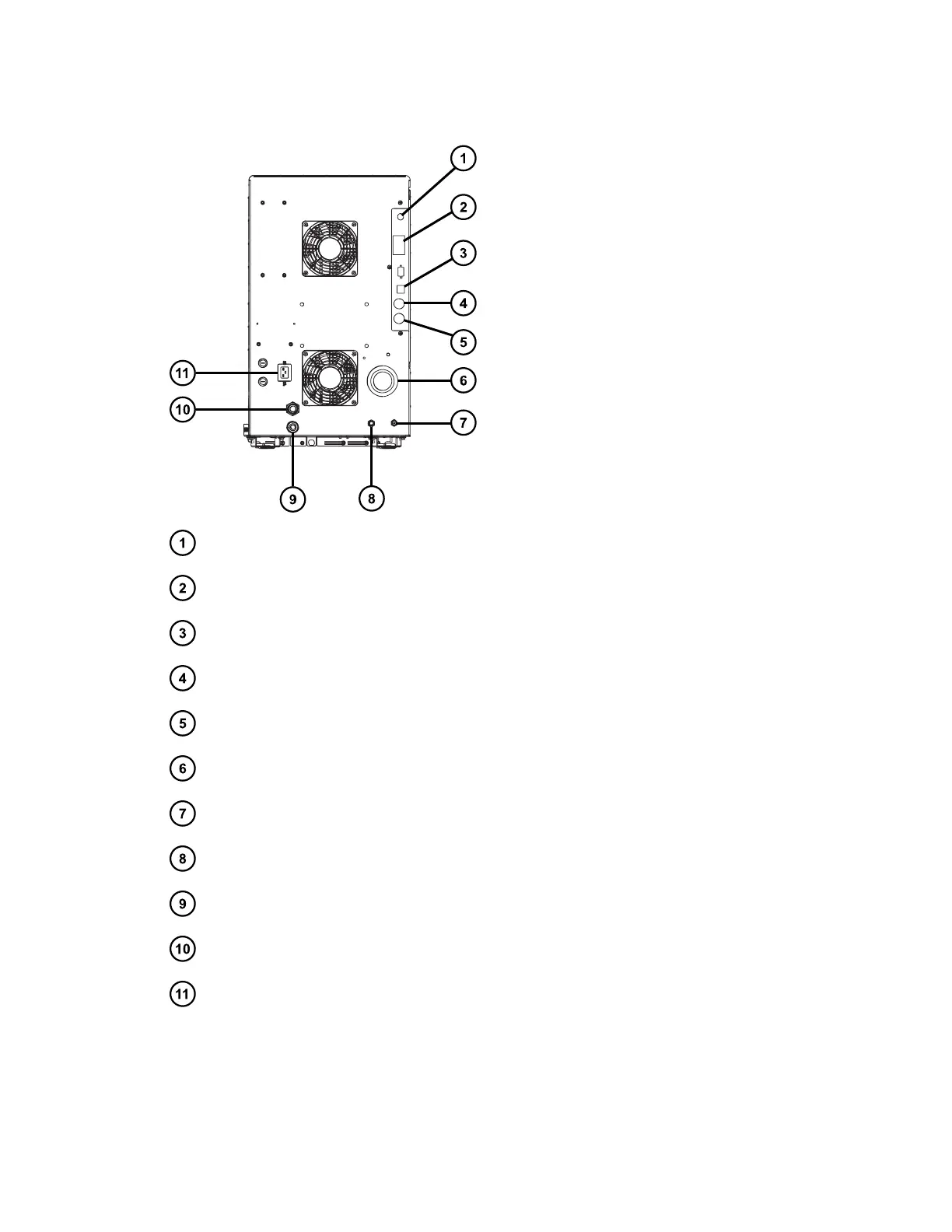

Figure 1–9: Mass spectrometer rear panel
Video connection
Event inputs and outputs
Shielded Ethernet
Waste bottle electrical connection
Roughing pump control
Source vacuum
Collision cell gas inlet
Nitrogen inlet
Turbo vacuum
Source vent
Power
January 10, 2022, 715006200 Ver. 01 (previously released as Rev. A)
