ProtoNode FPC-N34 & FPC-N35 User Manual

CHAPTER 3 – Interfacing ProtoNode to Devices

OMM-0150_B • 5/20/2021 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 26 of 140

3.5.4 AM Series Connections

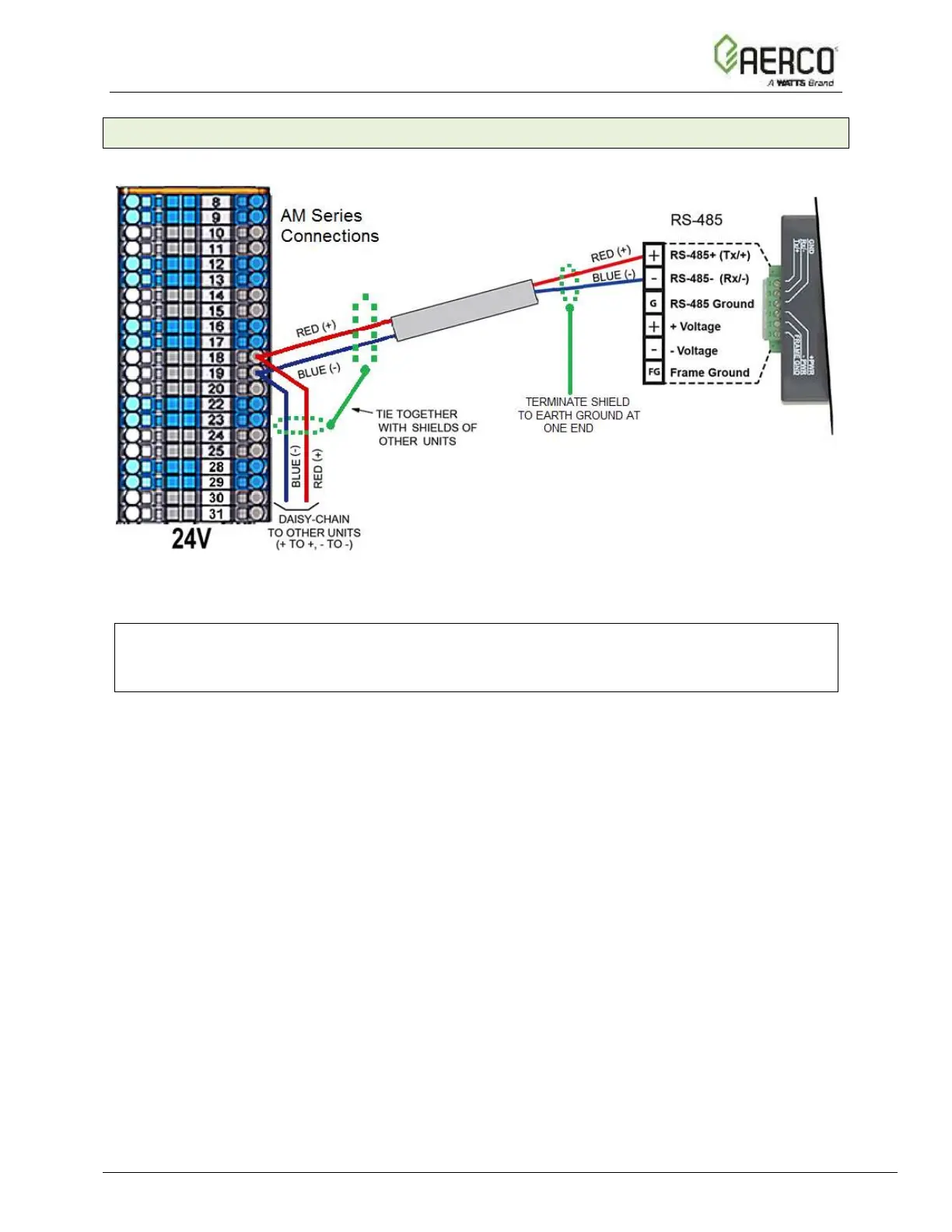

Figure 3-13: RS-485 Connection to AM Series (RS-485)

NOTE:

For connection of the ProtoNode along with the AERCO AM Series Cascade Sequencer

Controller, see Appendix I.
